Two-way diverter valve WET
WET diverter valve for granular & powder handling
Optimal silo feeding & pneumatic conveying

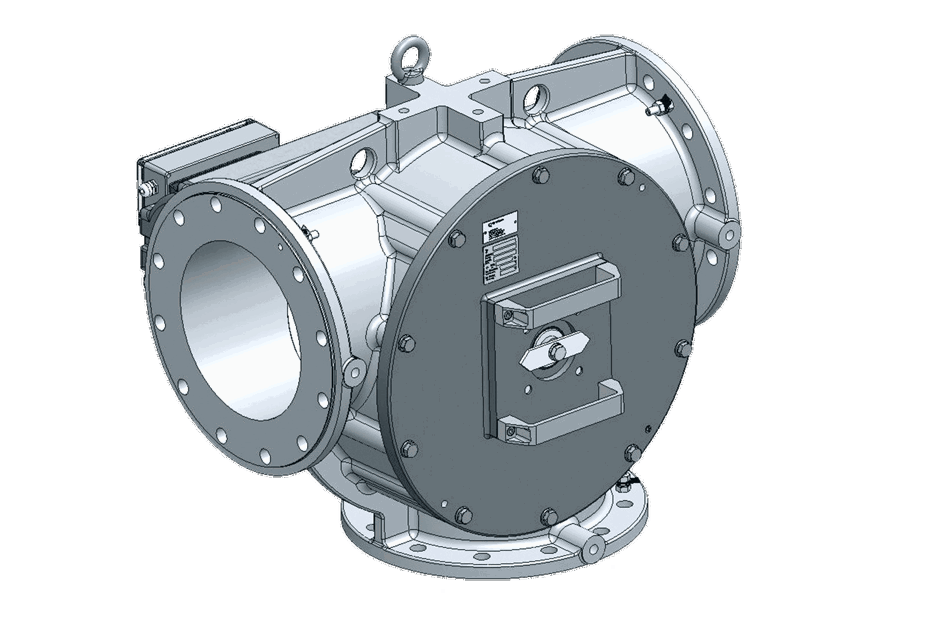

The WET two-way diverter valve from Coperion is designed for granular products in silo feeding and conveying lines. Its compact spherical design with a 90° outlet ensures efficient and reliable distribution at system pressures up to 6 barg.
Ideal for food powder and granular good applications:
- Flour
- Sugar
- Spices
- Other powdered or granular ingredients
For other types of flow control valves for food & pharmaceutical industries, see our valve range here.
This valve is compatible with plastics, chemicals, and mineral processing applications. For more information, please visit the diverter valve WET page on Coperion performance material website.
- Features
- Options
- Gallery
- Pressure range: 6 barg (87 psi) system and differential pressure; optional heavy-duty design up to 10 barg (145 psi)
- Operation temperature: –20 °C to 100 °C
- Application: Suitable for fluid group 2 according to PED (fluid group 1 on request)
- Seal configuration: Seal-free design with tight clearance between rotor and housing
- Material of construction: Cast aluminum with hard-coated product-contacting parts; optional stainless steel
- Can be used in ex-zones with proper accessories
- Cross seal between the outlets
- Product-contacting parts made of stainless steel
- Quick cleaning design
- Switchable in the product (case-by-case assessment)
- Actuator on the right-hand side
