ROTARY VALVE ZFD

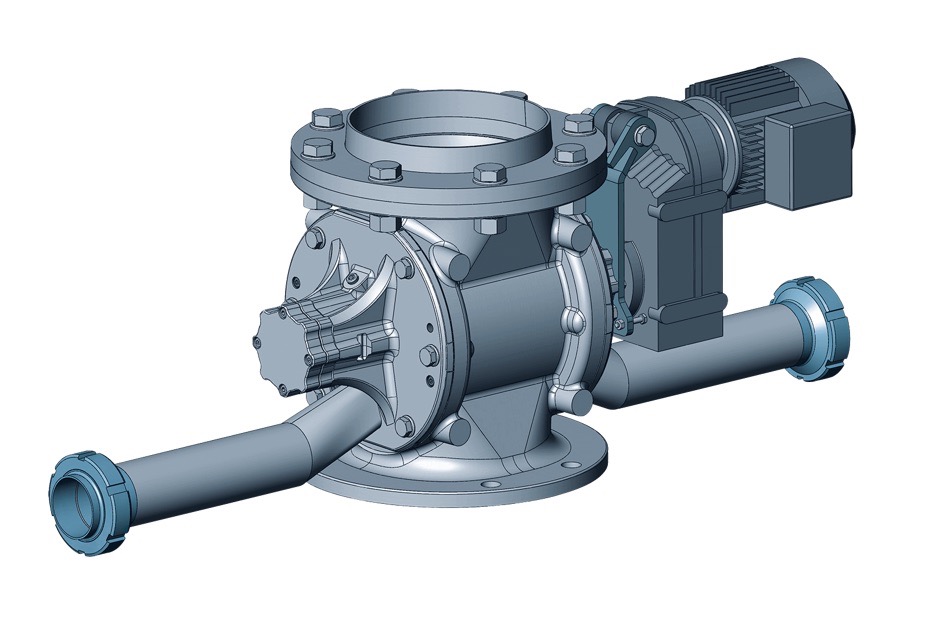

Rotary valve ZFD for food applications
Powder blow-through valve for food powders
Coperion’s blow-through rotary valve ZFD is designed for reliable and hygienic powder handling in food and pharmaceutical processes. EHEDG-certified, it supports fully automatic wet cleaning (CIP) without the need to open the valve, helping maintain product quality and reduce downtime.
deal for food applications:
- Flour
- Sugar
- Spices
- Other powdered ingredients
For other types of flow control valves for food & pharmaceutical industries, see our valve range here.
This valve is compatible with plastics, chemicals, and mineral processing applications. For more details, please visit the rotary valve ZFD page on Coperion performance material website.
- Features
- Options
- Gallery
- Hygienic design: Smooth, polished surfaces reduce product build-up.
- Easy cleaning (CIP): Can be cleaned automatically without opening the valve.
- Front seals: FDA-compliant seals at all openings prevent leaks.
- Pressure ready: Works at normal pressures (1.5 barg / 21 psi) and heavy-duty surges (up to 10 barg / 145 psi). Optional ATEX for safe use in explosive dust zones.
- High capacity: Large, unrestricted inlet for fast powder flow.
- Protected bearings: Bearings are separated from product for safety and easy maintenance.
- Quick cleaning coupling with extraction device
- Conveying line adaptors in acc. with DIN 11864
