Vacuum conveying control systems from Coperion K-Tron provide a fully integrated, pre-engineered solution for managing pneumatic conveying and vacuum sequencing across food processing environments. Designed for efficiency, consistency, and easy integration, these controls support both simple single-receiver applications and complex multi-receiver networks.
Benefits:
- Pre-engineered, pre-programmed designs for quick installation
- Common interface between pneumatic components and feeders
- Plug-and-play connectivity to reduce installation time and cost
- Accurate, repeatable material transfer
- Compatible with most plant automation architectures
- Supports EtherNet/IP, PROFIBUS, PROFINET and more
This system is compatible with plastics, chemicals, and mineral processing applications. For more details, please visit the standard conveying control page on Coperion performance material website.
- Overview
- Features
- Gallery
Coperion’s standard conveying controls provide a fully integrated environment for managing vacuum sequencing and material loading systems. Built on proven, pre-engineered designs, these controls simplify operation, improve system reliability, and ensure efficient performance for both compact single-receiver setups and complex multi-receiver networks.
Designed for flexibility and easy operation
Each system is built to minimize wiring, reduce installation cost, and provide fast commissioning. The LSR controller offers an all-in-one solution for single receivers, while the Series 4 MPC and Series 4 PLC central controllers allow operators to manage multiple receivers, control blower packages, and configure system parameters from one location. Quick-connect cabling, intuitive keypad interfaces, and pre-programmed logic make setup straightforward for new installations or retrofits.
Reliable performance for a wide range of conveying applications
The standard conveying controls portfolio supports systems ranging from basic refill operations to multi-blower, multi-receiver layouts. Features such as fill-by-time or fill-to-level operation, pulse-cleaning routines, programmable receiver modes, and integrated communication with SmartConnex feeder controls ensure stable, repeatable conveying performance.
With support for modern communication protocols and seamless integration to the K-Vision line controller, these controls offer strong connectivity, diagnostics, and scalability for advanced plant environments.

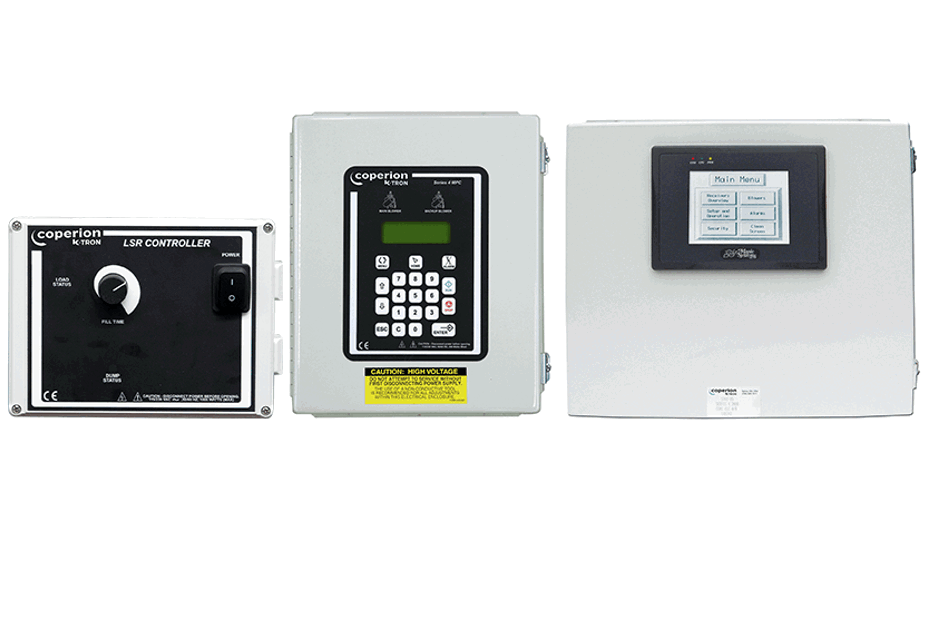

Control system components
- LSR controller: Compact, economical control with nine operating modes, LED indicators, and flexible fill configurations for single receivers.
- Series 4 MPC controller: Microprocessor-based central control for up to 24 receivers on one blower, featuring quick-connect installation and SmartConnex integration.
- Series 4 PLC controller: Advanced central control for up to 32 receivers and 4 blowers, offering expanded capacity, pre-programmed logic, and multi-language support.

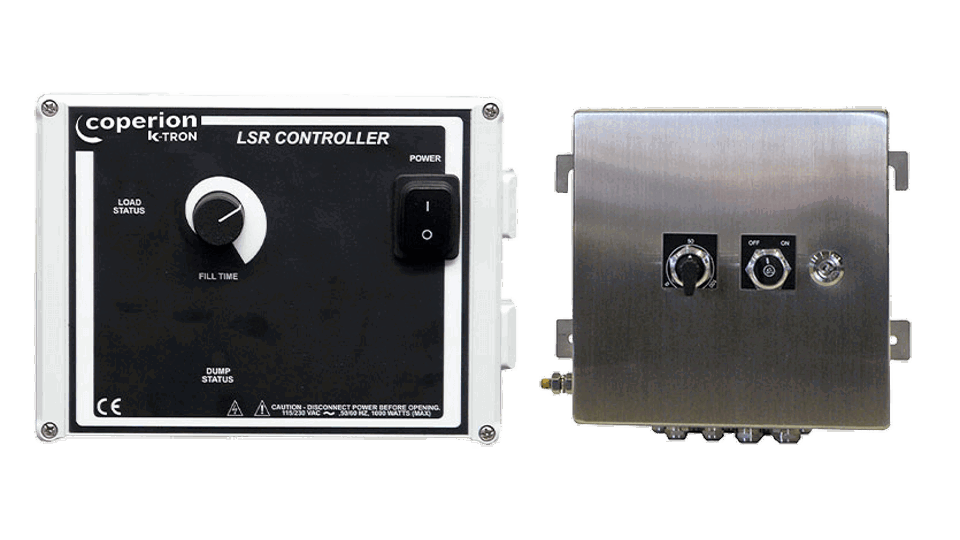

LSR controller (Loader single receiver)
The LSR Controller provides reliable control of Coperion K-Tron vacuum conveyors for a wide range of bulk materials. It supports fill-by-time or fill-to-level applications and works with gravity or powered discharge.
Features:
- Pre-wired 24 VDC sensors/actuators
- Auto-switching 115/230 VAC power
- Durable polycarbonate enclosure
- Nine operating modes
- Compatible with KCM for feeder refill
- LED status indicators and simple front-panel controls
- NEC Class II & ATEX options

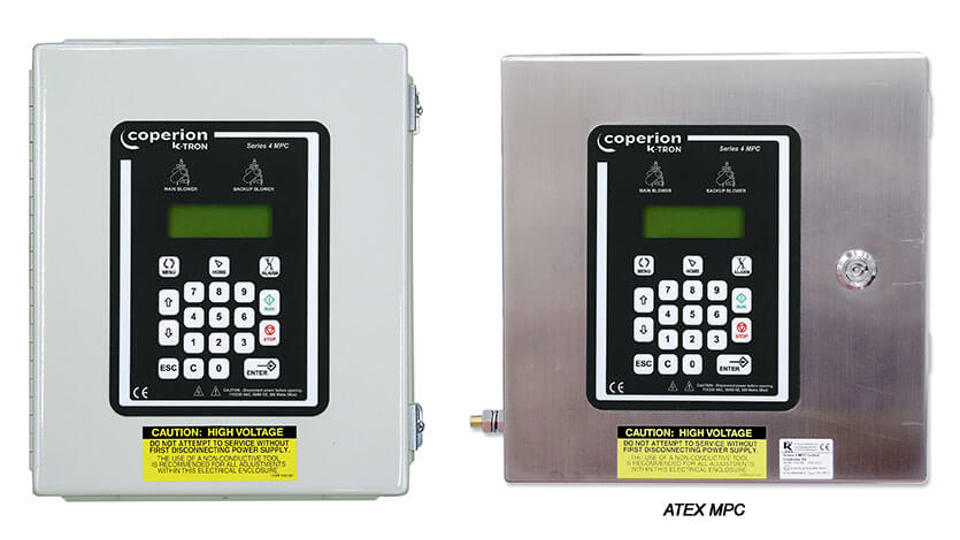

Series 4 MPC controller
The Series 4 MPC offers reliable microprocessor-based control for P-Series and 2400 Series receivers. Its low-voltage, quick-connect system allows fast installation without special tools.
- Touch-sensitive keypad
- Centralized setup and operation
- Integrates with SmartConnex feeder controls
- Communicates with K-Vision
- Ships pre-programmed for quick startup
Series 4 PLC controller
The Series 4 PLC manages complex conveying systems with up to 32 receivers and 4 blowers. It offers powerful automation while keeping the same intuitive interface and SmartConnex integration.
- Centralized keypad control
- System-wide monitoring and configuration
- SmartConnex feeder integration
- K-Vision communication
- Fully pre-programmed logic
