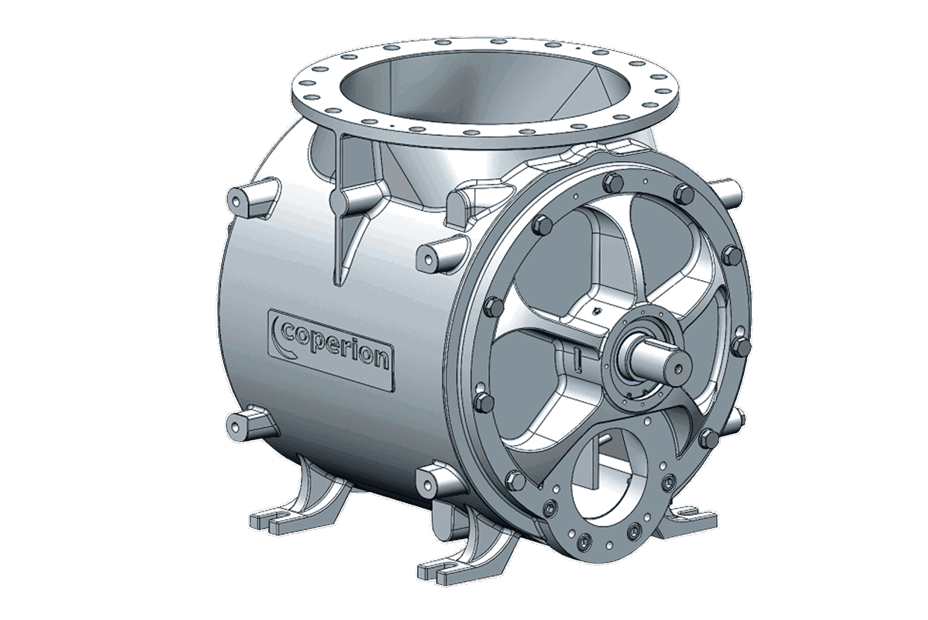

Rotary valve ZXQ
Rotary valve ZXQ for bulk food powders processing
Blow-through rotary valve ZXQ for bulk materials in pneumatic systems
The high-pressure blow-through rotary valve from Coperion is designed for safe and efficient handling of food powders and bulk ingredients. Ideal for feeding products such as flour, sugar, and spices into pneumatic conveying systems at pressures up to 3.5 barg (51 psi), it combines high capacity with hygienic, low-maintenance operation.
Ideal for food applications:
- Flour
- Sugar
- Spices
- Other powdered ingredients
For other types of flow control valves for food & pharmaceutical industries, see our valve range here.
This valve is compatible with plastics, chemicals, and mineral processing applications. For more details, please visit the rotary valve ZXQ page on Coperion performance material website.
- Features
- Options
- Gallery
• Pressure-resistant design: Surge-proof up to 10 barg (145 psi) for safe operation
• Low gas leakage: Open-end rotor with 14 pockets for high throughput
• Large inlet: No cross-section restriction for smooth feeding
• Outboard bearings: Separated from product via purged seals to maintain hygiene
• Optimized blow-through channel: Smooth product flow with minimal pressure drop
- Chamfered blades
- Heated housing
- DUROPROTECT® wear protection,
