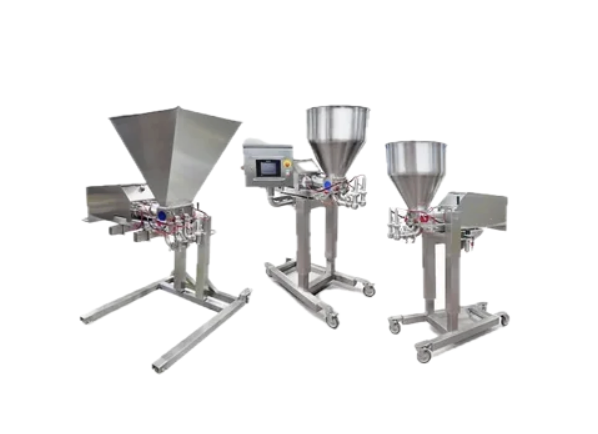

M Series depositor
Dual & triple lane depositors for food processing
Industrial food depositing machine ranges (M series) for sauces & fillings
The Unifiller M Series depositors are advanced dual or triple lane food depositors designed for accurate, high-speed portioning in multi-lane production environments. Built for integration over vacuum form, fill, and tray sealing lines, they handle a wide range of viscous to liquid products with or without particulates.
Maintain consistent performance, hygiene standards and production speed with the addition of an M Series machine in a food plant.
Benefits:
- Adjustable nozzles for flexible configurations
- Independent cylinders for accurate portion control
- Quick, easy cleaning for fast changeovers
- Optional servo version with PLC control, recipe storage, and conveyor integration
Ideal application:
- Sauces
- Batters
- Fruit fillings
- Soups
- Dressings
- Mousse
- Deli salads

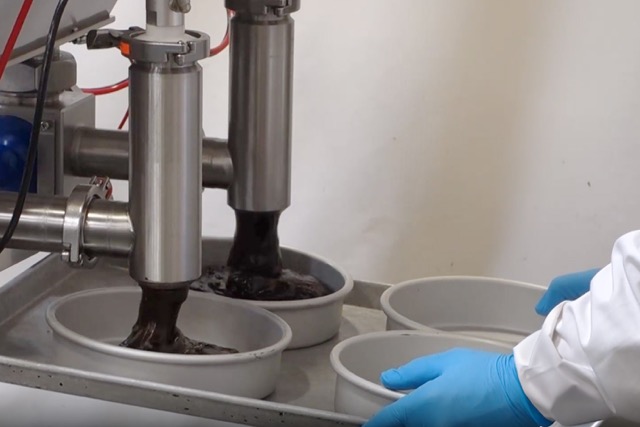

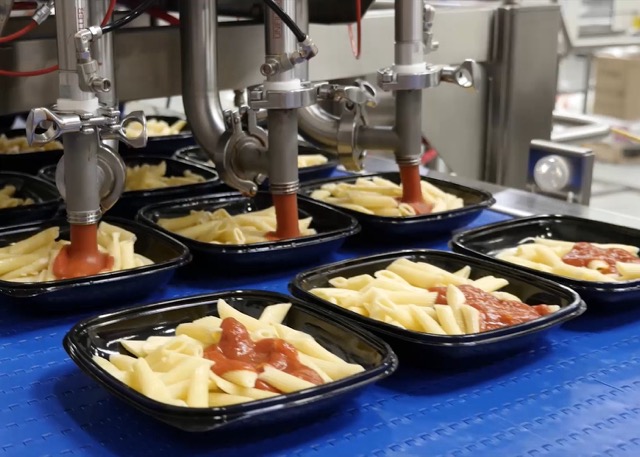

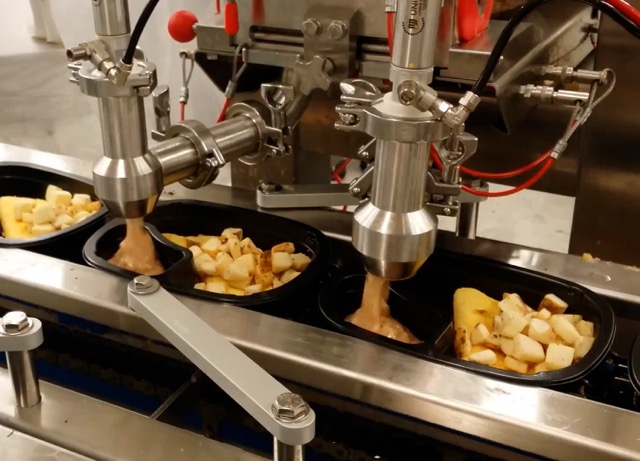

Application examples
See M Series food depositing machine ranges in action
Dual and triple lane food depositor machines for precise, high-speed portioning of sauces, fillings, and viscous products.
Alternatively, watch this on Youtube
- Overview
- Specifications
- Gallery
Flexible multi-lane portioning
The M Series features a multi-piston design that enables dual or triple lane depositing for increased production efficiency. Each product cylinder operates independently to ensure consistent and accurate portion control across all lanes.
Wide compatibility with food depositing equipment
Designed to handle relatively viscous to liquid products with or without chunks, the system is suitable for sauces, batters, fruit fillings, soups, dressings, mousse, and deli salads. It can process soft particulates up to 1″ (25 mm) without compromising deposit quality.
High-speed food depositing equipment performance
With speeds of up to 80 cycles per minute and a deposit range from 0.7 oz to 38 oz per nozzle, the M Series supports high productivity while maintaining precise weight control.
Automated integration options for food processing equipment
Available in a servo-controlled version, the depositor can be PLC-operated with multiple deposit capability, recipe storage, and seamless conveyor integration, enabling greater process control and repeatability within automated production lines. Dual M2 depositor available in two frame options – Pro or C-Frame for conveyor operations.
- Speed: Up to 80 cycles per minute
- Deposit range: 0.7 oz – 38 oz per nozzle
- Maximum particle size: 1″ (25 mm) soft cube
- Air requirement: 6 CFM @ 80 psi
- Washdown: Easy washdown design
- Tool requirement: No tools required
