Dough kibbler
Industrial dough breaker for food & bakery production
Biscuit & cracker dough feeding system
Coperion’s Shaffer Dough Kibbler is engineered to efficiently break up dry and stiff dough masses into manageable chunks for seamless downstream processing. It gently conveys the full dough batch through rotating tine cutters, producing “kibbled” pieces ready for feeding into forming or sheeting equipment at capacities up to 6,800 kg/hr (15,000 lb/hr).
Built for industrial bakeries and food processors, the system enhances dough flow, improves production efficiency, and supports high-capacity operations with hygienic, heavy-duty construction.
Ideal applications include:
- Biscuits
- Cookies – Rotary moulded
- Crackers
- Masa
- Pet food
- Overview
- Range
- Features
- Options
- Gallery
Efficient batch processing dough breaker

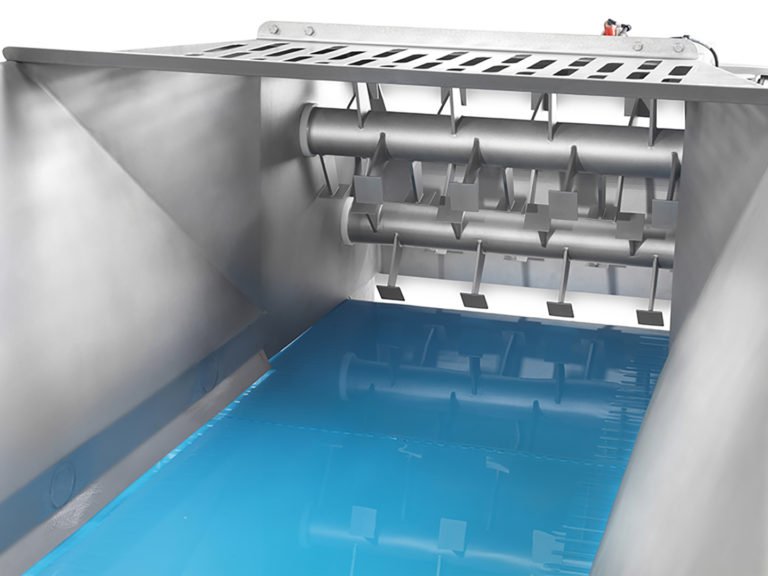

The dough kibbler is engineered to process entire dough batches in a controlled manner. Dough is conveyed through a live bottom system into rotating tine cutters, producing dough chunks that are ready for sheeting, forming, or further processing.
Ensures optimized dough flow to downstream equipment
By breaking dense dough masses into manageable pieces, the system ensures reliable feeding into downstream production equipment. This improves line efficiency, reduces manual handling, and supports consistent product quality.
Built for demanding industrial environments
Constructed with a heavy-duty stainless steel tubular frame and designed for washdown conditions, the Kibbler meets demanding sanitation and safety standards. With production capacities up to 6,800 kg/hr (15,000 lb/hr), it supports both medium and high-volume bakery operations.
| Model | Capacity | Volume |
|---|---|---|
| HS6 | 273 kg (600 lb) | 601 L (21.2 cu ft) |
| HS8 | 364 kg (800 lb) | 676 L (23.9 cu ft) |
| HS10 | 455 kg (1000 lb) | 789 L (27.9 cu ft) |
| HS13 | 590 kg (1300 lb) | 1032 L (36.5 cu ft) |
| HS16 | 727 kg (1600 lb) | 1414 L (49.9 cu ft) |
| HS20 | 909 kg (2000 lb) | 1619 L (57.2 cu ft) |
| HS25 | 1136 kg (2500 lb) | 2124 L (75 cu ft) |
| HS28 | 1273 kg (2800 lb) | 2292 L (81 cu ft) |
| HS32 | 1458 kg (3200 lb) | 2683 L (94.8 cu ft) |
- Production rates up to 15,000 lb/hr (standard models up to 7,000 lb/hr)
- Heavy-duty stainless steel tubular frame mounted on casters for durability and mobility
- Stainless steel hopper capacities ranging from 600 to 3,200 lb
- Live bottom conveyor system with stainless steel slider bed design
- Positively driven neoprene food-grade belting for consistent dough feeding
- Custom-sized pump and bevel-seat discharge port to match production requirements
- Designed for washdown environments with NEMA 4X operator and starter enclosures
- UL and cUL compliant controls
- BISSC certified construction
- ANSI, USDA, and CE compliant
- Independent flighted dough conveyor
- Dough level sensor at hopper (process line integration)
- Operator controls integrated with mixer system
- Pull-cord emergency stop on hopper
- Perimeter guarding on hopper for enhanced safety
