TruClean™ series3 rotary moulder
Rotary moulding for biscuit production
Advanced dough moulding technology for soft biscuit & cookie applications
The Baker Perkins TruClean™ series 3 rotary moulder is engineered for high-speed, precision production of biscuits and cookies. It ensures consistent control over size, weight, and texture, handling everything from delicate, thin crisps to thick bars, and from small inclusions to large-format biscuits.
Benefits:
- High-speed production up to 50+ m/min
- Precise weight and texture control through independent drives
- Quick die roll and web changes to reduce downtime
- Lower maintenance requirements
- Compatibility with Series2 and 390 die rolls
Ideal for:
- Soft dough biscuits
- Shaped biscuits
- 3D moulded biscuits
- Shortbreads
- Pet treat biscuits
Application examples
See our rotary moulder Series3 in action
Discover how the Series3 maintains consistent cavity filling and stable production performance up to 50+ m/min.
Alternatively, watch this on Youtube
- Overview
- Specifications
- Gallery
- Resources
Precision at high output
Independent direct drives control mould roll and extraction web speeds for stable, high-speed production. Adjustable process parameters ensure consistent cavity filling and accurate product weight.
Controlled dough handling

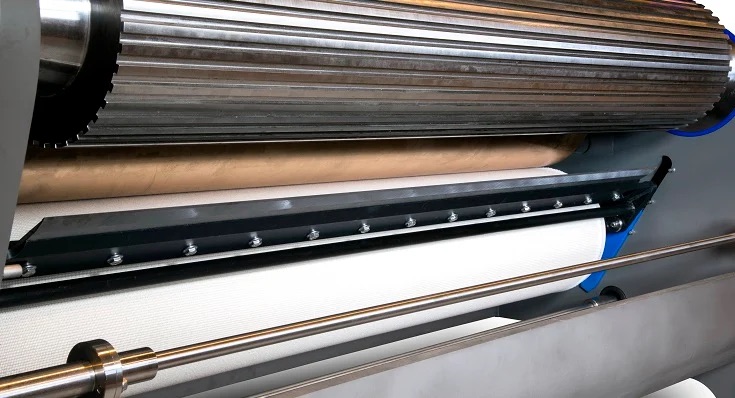

The tangential knife system and optimized forcing roll settings support uniform dough distribution. Automatic web tensioning ensures clean extraction and extended web life.
Hygienic & easy to maintain
Built to TruClean™ sanitary standards, the open-frame design allows easy access for cleaning and inspection. Simplified roll and web changes reduce downtime and operating costs.
- Machine widths: 1000mm (39″), 1200mm (48″), 1500mm (60″)
- Construction materials: Coated mild steel or 303/304 stainless steel
- Maximum speed: 50+ m/min
- Die roll diameter: 259 mm (10.2″) can be configured to work with our 254mm (10″) diameter die but are not interchangable
- Drive system: 3 drives
- Die roll drive: VFD Driven gear motor
- Control type: PLC Controls
- Frame: Continuous welded frame
- Belt tracking: Pneumatic tracker
- Compatibility: Series2 and 390 range die rolls
- Sanitary design: TruClean™ standard construction
Download
brochure
To learn more about the TruClean™ series3 rotary moulder by Baker Perkins, please download our PDF documentation.
