KEK Universal Milling
KEK universal milling machine for food processing
Universal milling
Intermediate versatile powder mills & granulators

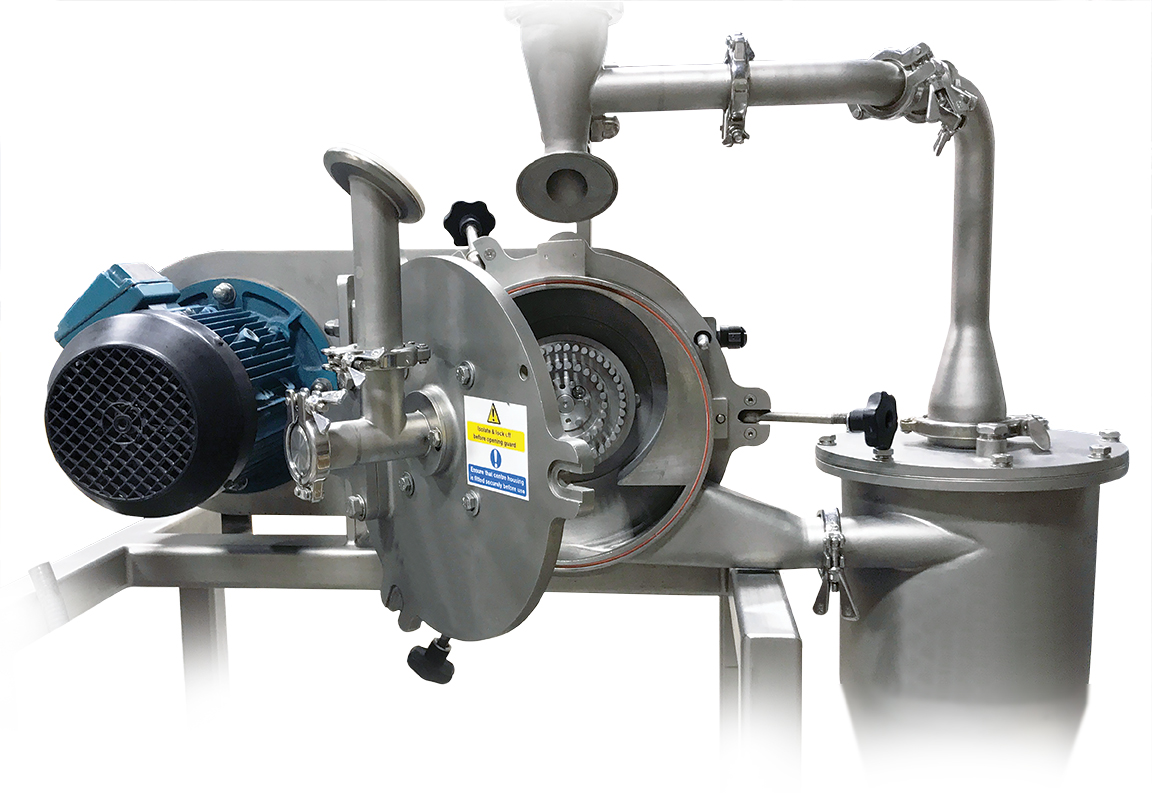

The KEK Universal Milling machine from Kemutec is a high-performance solution for versatile powder processing in the food, chemical, and pharmaceutical industries.
A universal mill provides high-performing one-pass fine grinding. This type of Kemutec mill is ideal for when a controlled reduction in particle size is needed, coupled with a high degree of fineness.
Universal milling machines are commonly used in the fine-food processing industries, such as those who grind spices, salt and sugar. Due to its performance, it is also a popular choice of Mill for those working in the powder sectors, including chemicals and pharmaceuticals.
See our universal milling in action
See the KEK universal milling in action, delivering high-performance fine grinding with interchangeable media. Ideal for food powders, chemical products, pharmaceuticals, and cosmetic or personal care formulations.
Alternatively, watch this video on Youtube.
- Overview
- Features and Benefits
- Gallery

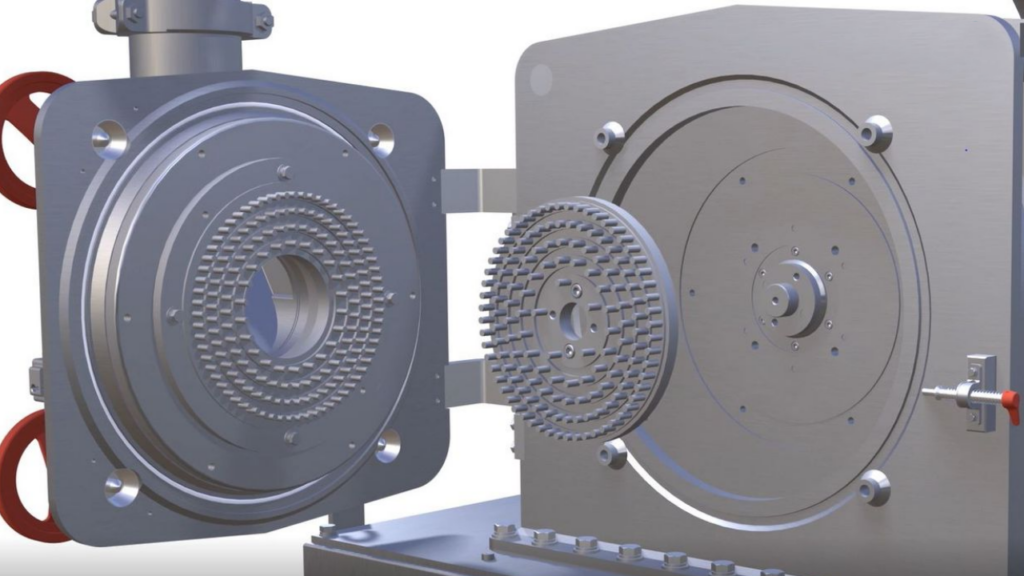

To allow for maximum process performance and minimal downtime, the KEK universal mill is available with a variety of interchangeable grinding media, such as turbine and screen grinding components, as well as pinned disc grinding media.
Specially designed to provide capabilities of unsurpassed performance and controlled fine-milled particle size, this type of Mill processes material to a D50 of 100μ to 20μ.

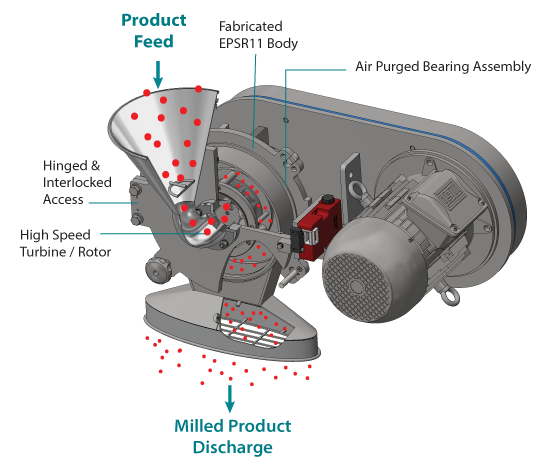

Another design advantage is that it allows for flexible system integration. As an effect, fitting the mill is easy in both new production lines or existing, while the integration of a hinged and interlocking door enables easy access for simple maintenance and inspection.
To ensure minimal moisture absorption and to maintain material integrity, the Universal features a specialized closed-loop ‘airless’ design. For heat-sensitive product, optional temperature control and full cryogenic grinding capabilities are available. This also helps grind materials that are difficult to process at ambient temperatures, by first cooling the material to a rate in which it can then be successfully ground.
- Fine grinding capabilities, through unrivalled milling performance
- Interchangeable grinding media, for precision processing
- Minimal moisture absorption, enabling material integrity
- Optional temperature control and cryogenic grinding
- Simple to clean and maintain
- Easy to integrate
- Models to suit a variety of materials
- Interchangeable grinding media for maximum process performance and minimal downtime
- High performance, for superior fine grinding
- Milled particle size range down to a D50 – 100μ to 20μ
- Can be custom integrated into an existing system, for maximum design flexibility
- Closed-loop “airless” milling, for minimal moisture absorption
- Temperature controlled and cryogenic grinding available
