Disc sprayer

Industrial disc sprayer for food processing

High-performance food spraying machine for industrial bakery and processing lines

The disc sprayer from BAKON is designed to apply a wide range of hot and cold liquids such as egg wash, oil, liquor, or water with a clean, even finish. Whether equipped with 2 or up to 10 high-speed discs, each system ensures uniform coverage across your products with minimal overspray or fluid loss. The result is a consistent appearance, optimized use of ingredients, and a clean production environment.

The machine’s adjustable conveyor and pump speeds allow full control over the spraying process. Each disc can also be adjusted individually to meet specific product or recipe requirements. Overspray is collected and returned to the container for re-use, improving sustainability and operational efficiency.

Ideal uses include:

Applications with egg wash, oil, water, liquor, and other thin fluids (hot or cold)
Pastries, breads, and pre-baked goods
Medium to high output bakeries

Download brochure (.pdf)

More about BAKON

Application examples

Cinnamon roll

Filled croissant

Plain croissant

Glazed pastry

Sourdough bread

Kaiser roll

Brioche
bun

Pastry

Burger roll

Pita bread

Focaccia bread

Challah

See it in action

Watch how the high-speed discs apply a smooth, uniform layer of egg wash or other fluids with precision and minimal waste. The hygienic design and adjustable features make it ideal for consistent, clean, and efficient finishing.

Overview
Range
Options
Gallery
Resources

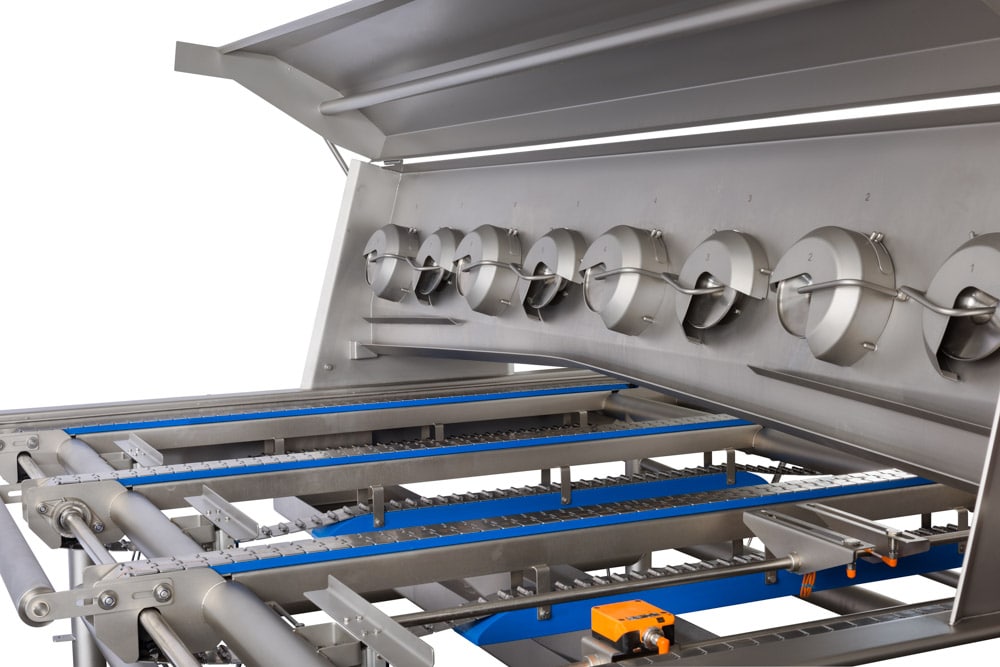

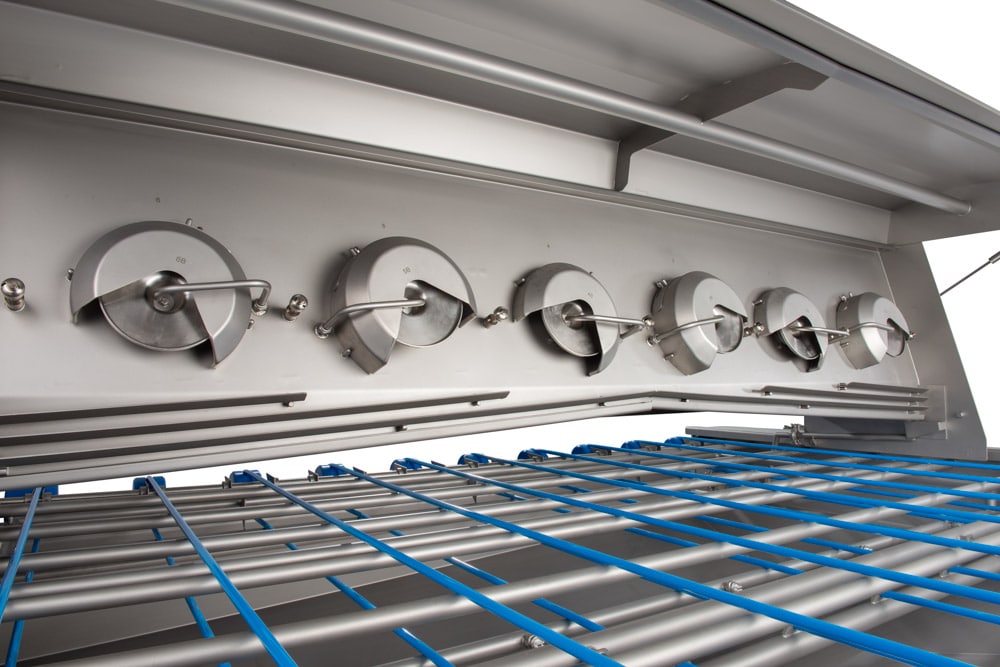

The disc sprayer is a high-efficiency industrial food spraying machine engineered for even and precise application of thin liquids such as egg wash, oil, liquor, and water, both hot and cold. Designed for bakery and food processing environments, it uses high-speed spinning discs to create a fine, uniform coating with minimal overspray and virtually no product loss. Each disc can be individually adjusted for flow rate, ensuring accuracy across a wide range of product sizes and shapes.

Consistent spraying quality with scalable output

Available with 2 to 10 (or more) discs and working widths from 400 to 1200 mm (larger sizes upon request), the Disc Sprayer adapts to varying production needs. It supports both stand-alone and inline configurations and is suitable for medium to high output. Individual disc control and adjustable conveyor and pump speeds allow precise, repeatable spraying for consistent product presentation.

Designed for hygiene and ease of operation

Built entirely in stainless steel and corrosion-resistant materials, the disc sprayer is maintenance-free and easy to clean. The optional Cleaning Assistant system further reduces cleaning time, helping manufacturers maximize uptime and support HACCP compliance. Overspray is automatically collected and returned to the container, contributing to a clean production environment and material efficiency.

Reliable operation and process control

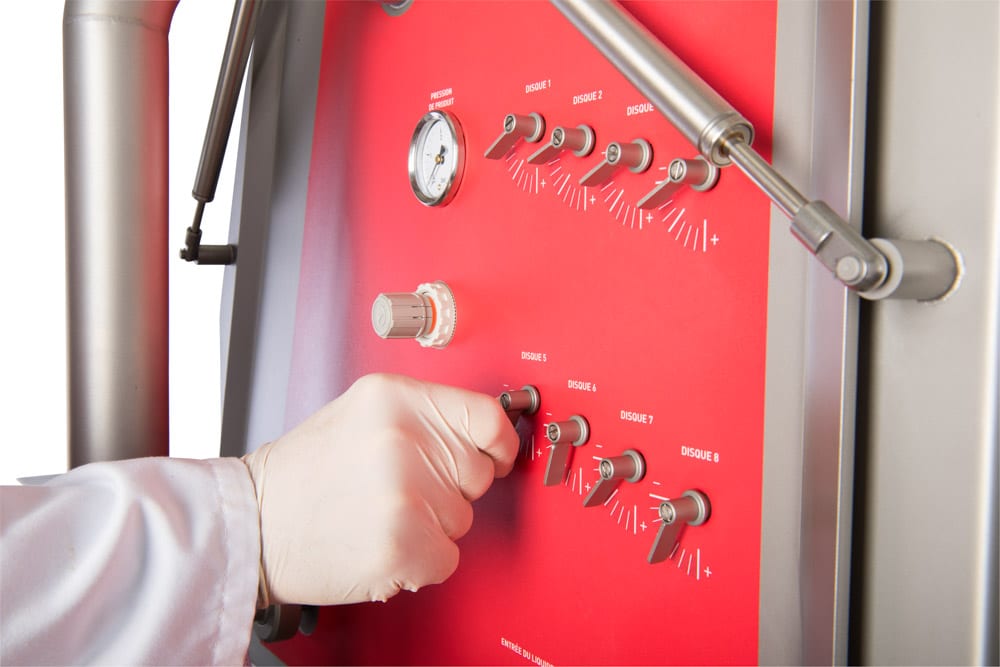

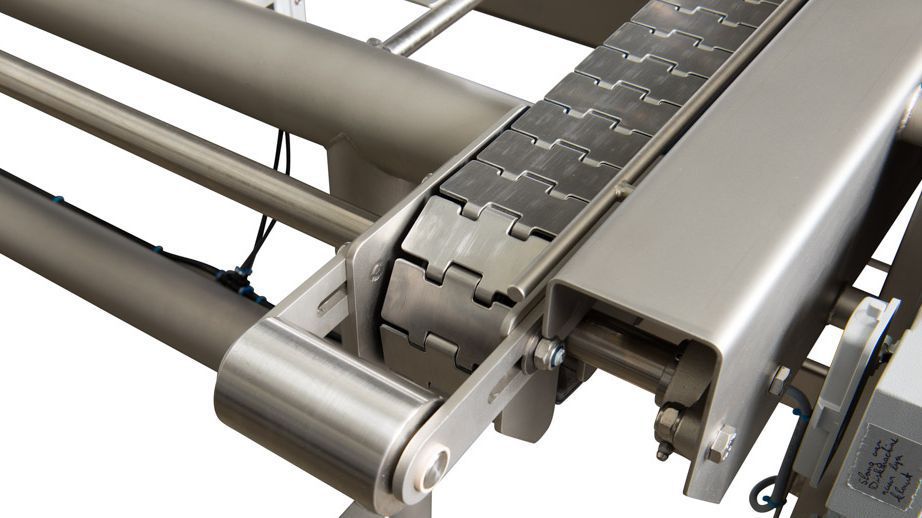

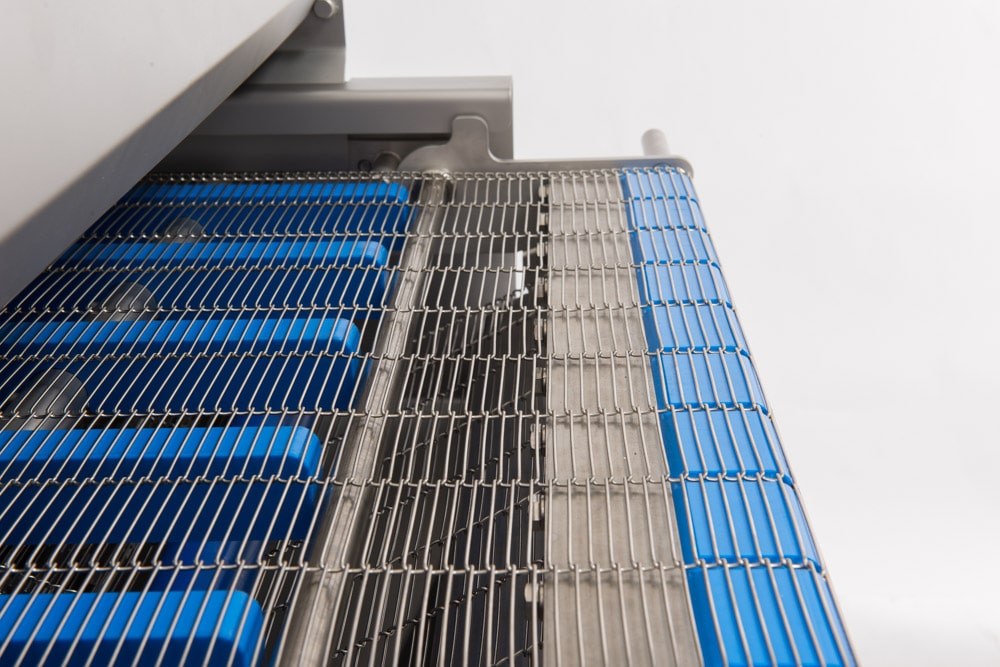

From its intuitive control panel to the adjustable flow per disc, the disc sprayer is designed for accurate control and reliable performance. Various conveyor options, including polycords, slat top chain, wire mesh, or chain belt; enable seamless integration into existing lines. Optional features such as a refrigerated collecting tank and eccentric disc pump (for long shift operations) further enhance flexibility and efficiency.

Model	Number of discs	Working width	Key feature	Capacity

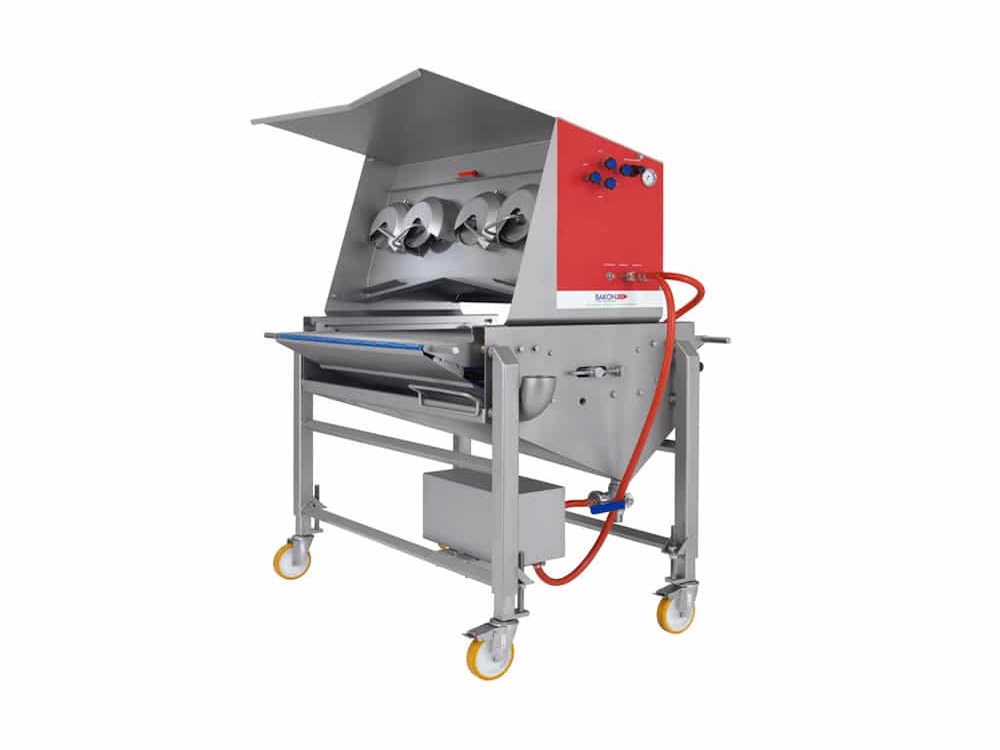

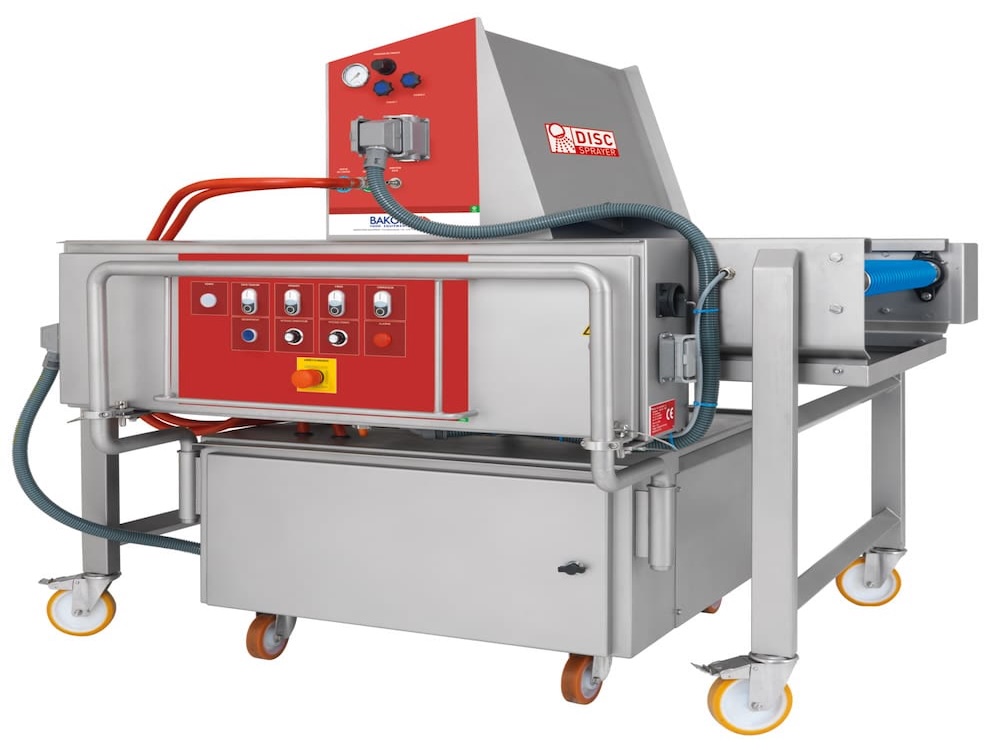

Standard Disc Sprayer	2	n/a	Movable, compact, short conveyor	Medium to high output
Compact Disc Sprayer	4	n/a	Adjustable flow per disc, various conveyors	Medium to high output

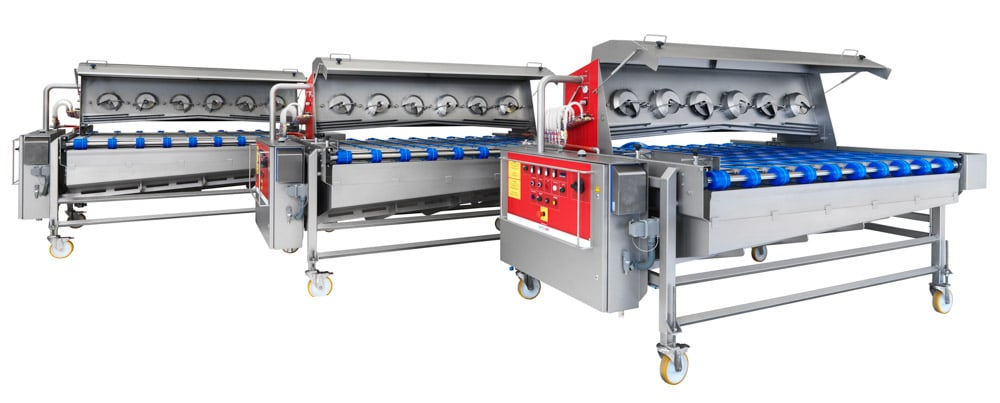

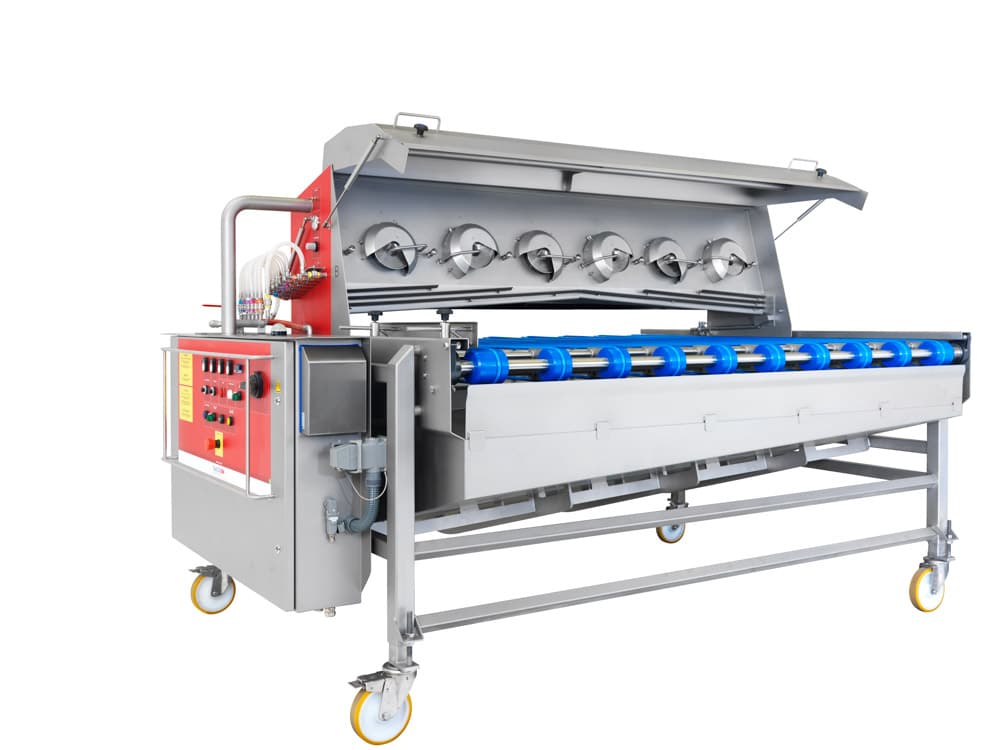

6-Disc Sprayer	6	600 – 3000 mm	Wider working width, chain belt conveyor	Medium to high output

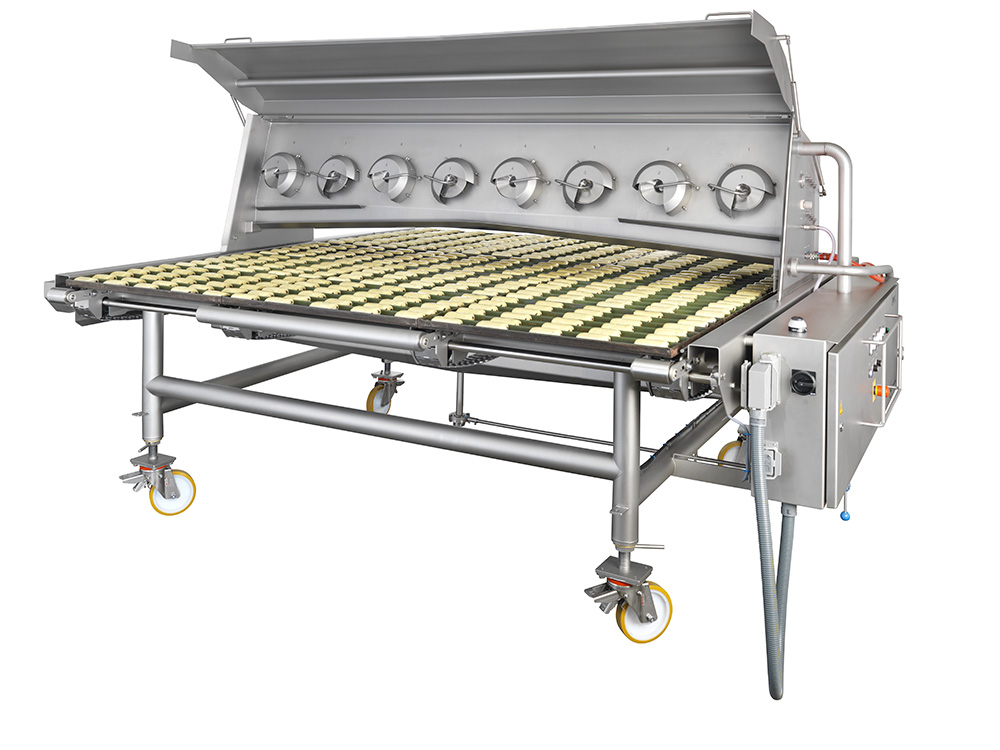

8-Disc Sprayer	8	Up to 3000 mm	Tray guiding system, sensors, foldable conveyor	Medium to high output
