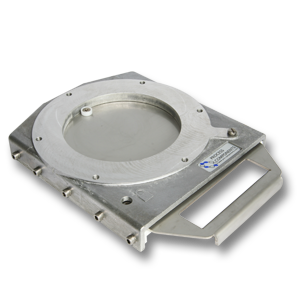

SV slide gate valve
Simple, cost effective solution for IBC closure; suitable for both rigid and semi-rigid intermediate bulk containers
The Mucon single flanged slide gate valve provides the ideal solution for isolating and discharging intermediate bulk containers or other storage units requiring no onward connection.
The simple but feature rich Mucon slide gate valve is manufactured to our high standards and available from stock.
Applications:
- IBC outlet closure and discharge
- Single, top flange mounting only
- Overview
- Features
- Options
- Gallery
Construction:
- All body parts are manufactured from cast aluminium
- Stainless Steel AISI 304 slide plate
- Hand operated – Simple but robust construction

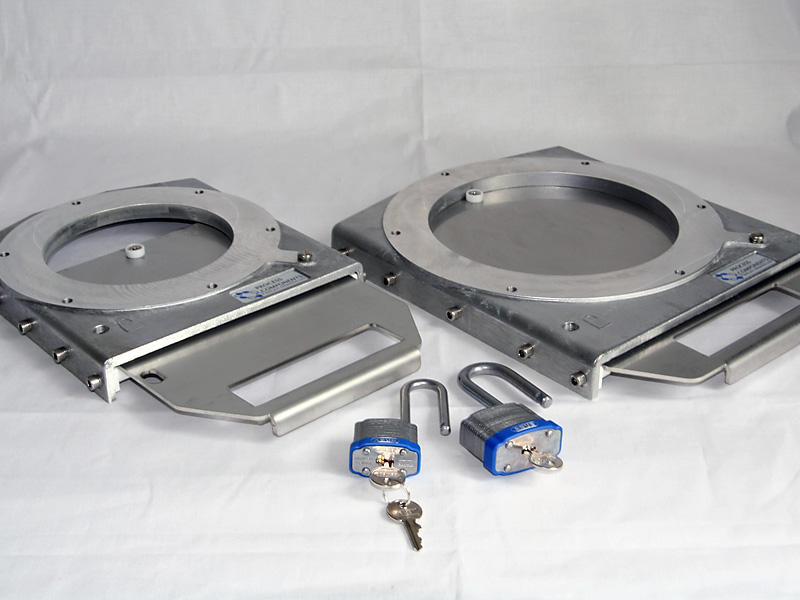

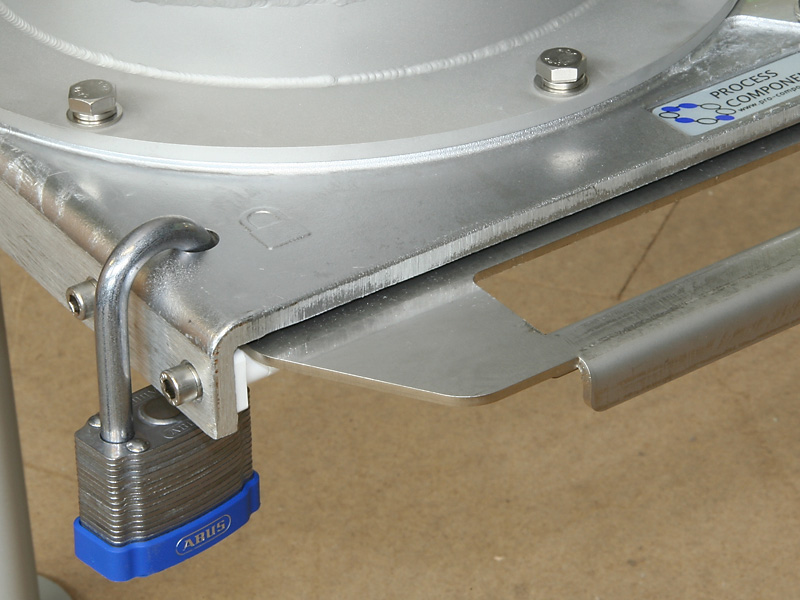

- Facility to lock the valve in the closed position by padlock or lockout tags

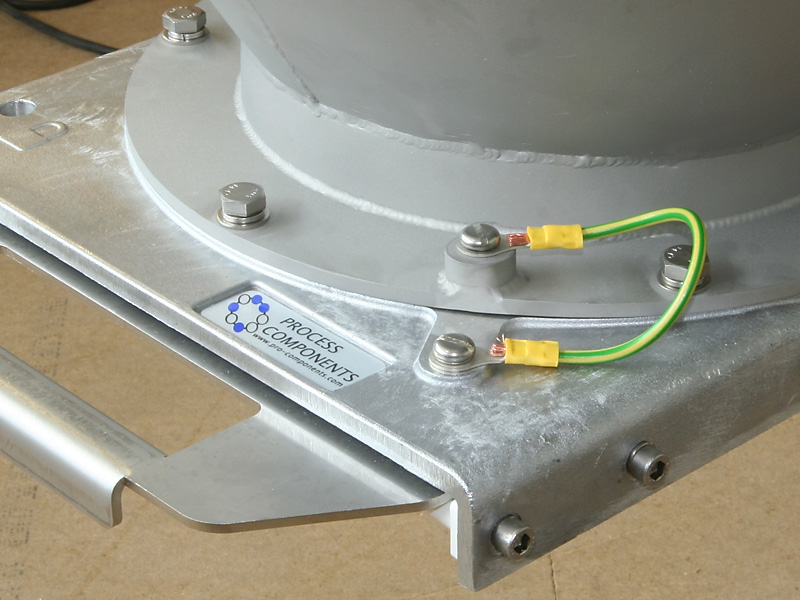

- Provision for ‘earth’ tag where there is potential for static electricity generation
- Slim design
- Body in cast aluminum with machine flanged face
- Slide plate runners of Nylon 6 to withstand heavy loading
- Flange dimensions identical to the H Series Iris Valve for interchange ability
- Size range 150mm, 200mm, 250mm & 300mm)
- High temperature version available with metallic blade supports
