High Shear Mixer
Industrial horizontal mixer for cream
and batter processing
Robust horizontal mixers designed for large-scale bakery production

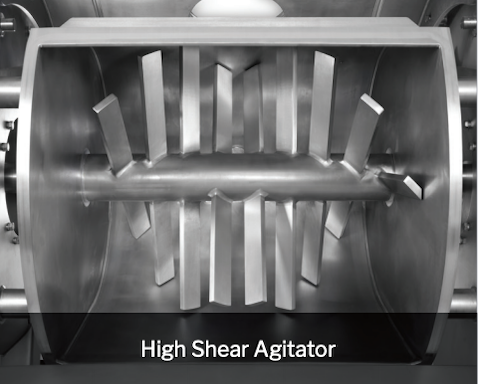

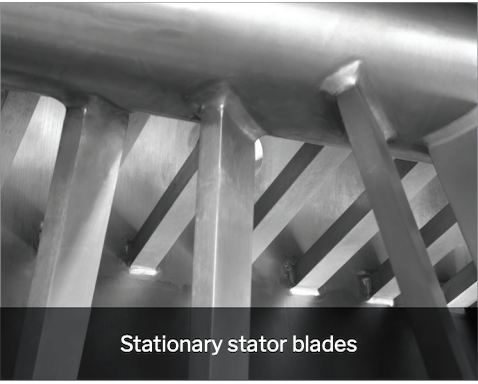

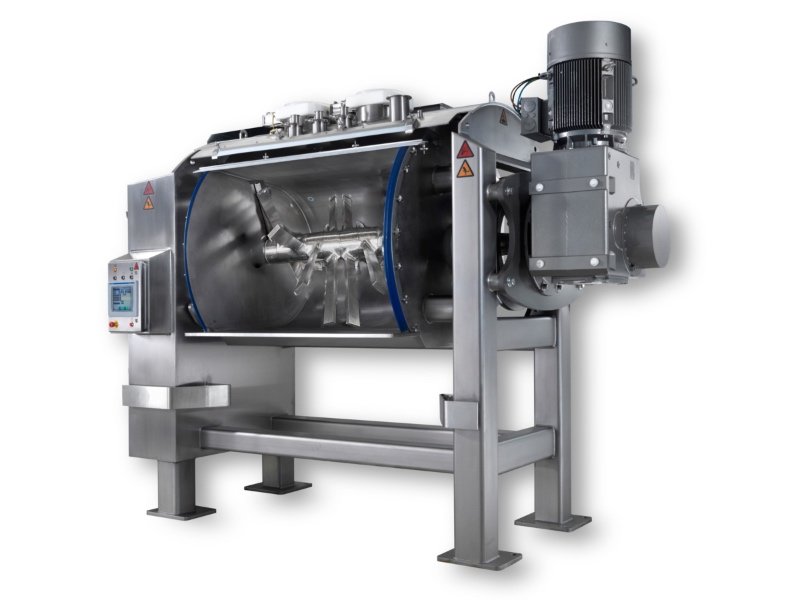

High-shear mixer from Shaffer is designed for industrial-scale blending, whipping, and aeration of high-viscosity batters and creams. Equipped with a heavy-duty stainless steel rotary blade and fixed stator blades, these mixers deliver efficient high-shear mixing, ideal for bakery, confectionery, and slurry-based applications.
Their robust construction, hygienic features, and automation-ready control options make them a preferred choice for bakeries and food processors requiring consistent, high-quality results in large-scale production environments.
Ideal applications include:
- Cookie, cake, and muffin batter mixing
- Whipping creams, icings, and confectionery fillings
- Mixing liquid or slurry-based products
- A high-performance alternative to traditional vertical slurry mixers
- Overview
- Range
- Options
- Gallery
Shaffer® High-shear mixer is built to handle demanding applications with dense, high-fat, or aerated batters. Whether producing sweet baked goods or creamy fillings, these mixers combine shear power with precision control. Their hygienic design and high-capacity range make them an excellent solution for continuous production lines requiring speed, repeatability, and sanitation.

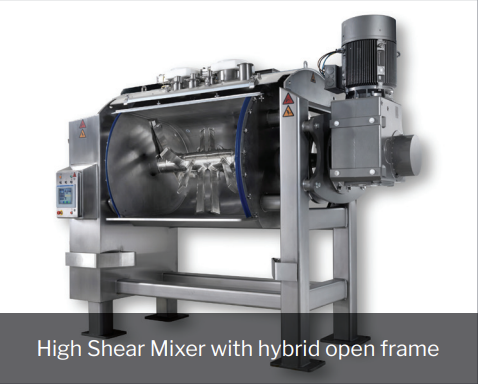

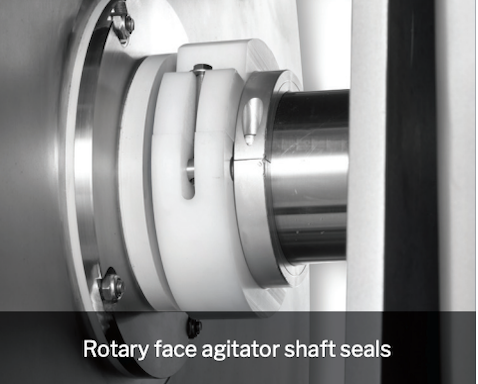

Available in enclosed or hybrid open frame designs, each mixer features stainless steel construction, customizable operator interfaces, and a patented rotary face shaft seal system for long-term reliability.
Reliable, sanitary, and scalable
With batch capacities ranging from 1,500 to 2,800 pounds (680–1,270 kg), the mixers are suited for both mid-size and large-scale production. Optional load cells and Clean-in-Place (CIP) systems further support automated, high-throughput workflows.
All contact surfaces, including the bowl, agitator, and canopy, are constructed of stainless steel. Positive pressure bowl seals and metal-detectable components ensure food safety compliance and clean operation.
Operator-focused design
From the intuitive touchscreen interface to hydraulic tilt and flexible canopy configurations, the mixer prioritizes ease of use and integration. The Watershed® panel enclosure allows for streamlined, waterproof control, while ergonomic bowl tilt systems simplify discharge and sanitation.
| Model | Capacity | Volume |
|---|---|---|
| HSB200 | 680 kg (1,500 lbs) | 736 L (26 cu ft) |
| HS8270 | 907 kg (2,000 lbs) | 991 L (35 cu ft) |
| HSB320 | 1,270 kg (2,800 lbs) | 1,237 L (43.7 cu ft) |
Optional features
- Refrigeration jacket for temperature-sensitive batters

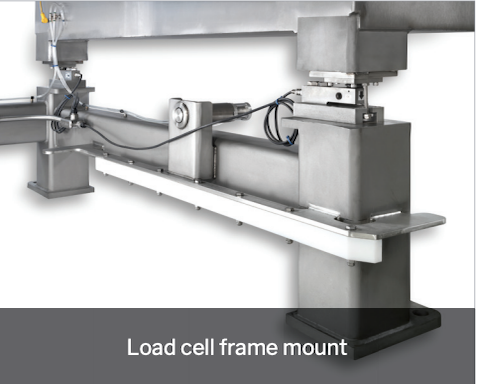

- Load cells for precise batch measurement

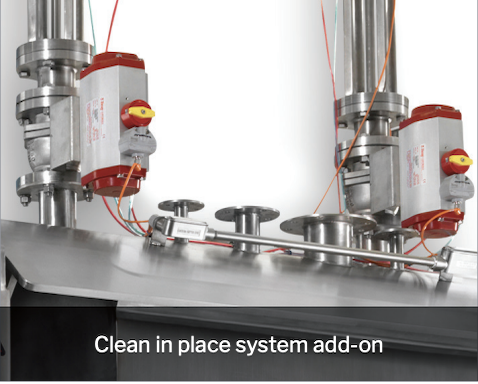

- Clean-In-Place (CIP) system for automated hygiene
- Custom electrical and PLC interface packages
- Canopy configuration options with ingredient doors or special inlets
- Sanitary bowl drain and pumping port for flowable products

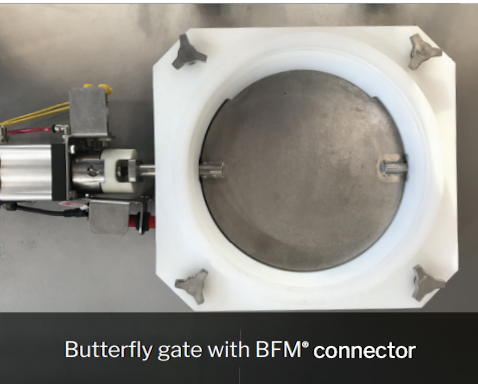

- Sliding flour gates and trough/kibbler integration

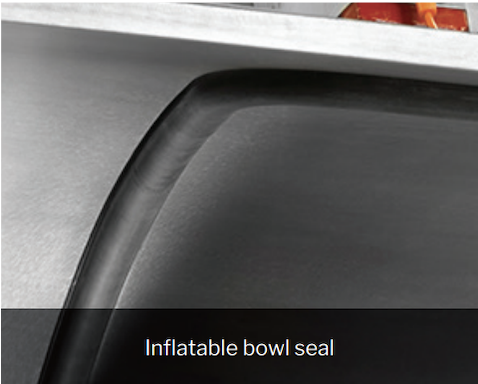

- Inflatable bowl seals and integrated voltage indicators for added safety
- ARC flash protection for electrical panels
Why Choose the Shaffer® High Shear Mixer?
The Shaffer® High Shear Mixer provides exceptional aeration, handling stiff creams and viscous batters with ease — tasks traditionally suited to vertical mixers — while accommodating larger batch sizes for increased production capacity. Its robust design supports efficient, high-volume production, making it an invaluable choice for industrial bakeries looking to maintain product quality and consistency at scale.
