Dough conveyor
Heavy-duty bakery dough conveyors
Custom vertical, incline, or horizontal conveyors for your bakery needs
Shaffer® dough conveyors efficiently move dough from mixers to downstream equipment, handling products from bagels and sweet doughs to frozen dough, masa, and pizza crusts. Available in vertical, incline, or horizontal layouts, they feature stainless steel construction, food-grade belts, and wash-down compatibility. Optional features like variable speed motors, reversing conveyors, and quick-release belts ensure smooth integration with your production line.
Highlights:
- Heavy-duty stainless steel frame for wash-down and easy sanitation

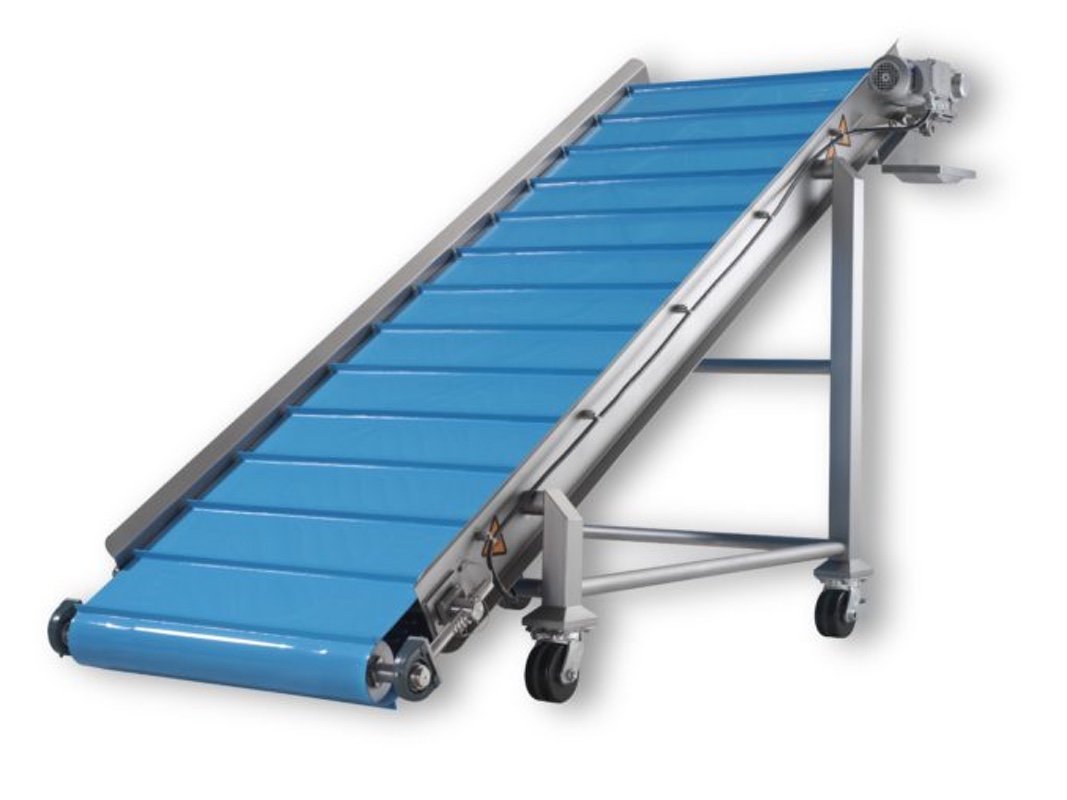

- Incline conveyors with smooth, flighted, or cupped belts

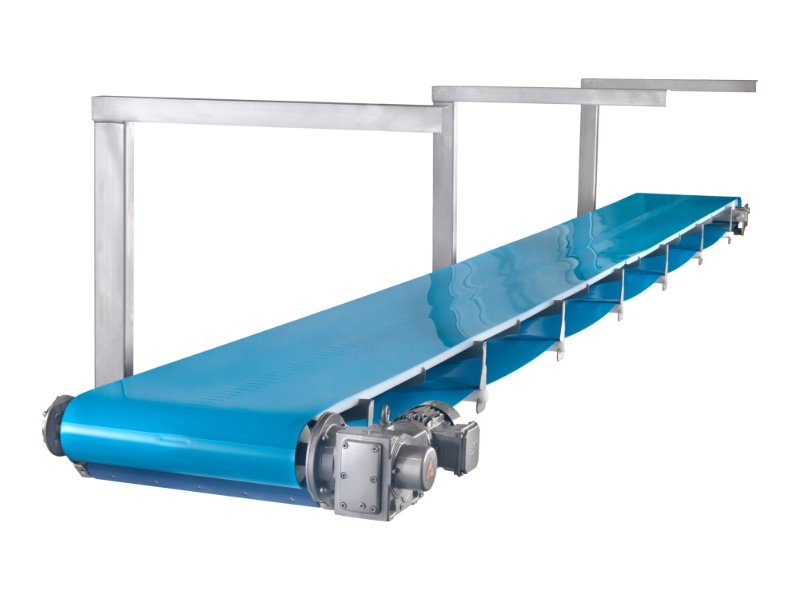

- Horizontal conveyors with reversing capabilities
- Positively driven, food-grade neoprene belts
- Variable speed motors to match downstream line speeds
- Positive drive belts with integral teeth to prevent slippage and tracking issues
Ideal uses include:
- Bagels
- Bread
- Buns / Rolls
- Cookies – Rotary Moulded
- Crackers
- English Muffins
- Frozen Dough
- Masa
- Pet Food
- Pizza
- Sweet Doughs
- Tortillas – Flour
- Overview
- Range
- Features
- Options
- Gallery
- Resources
Shaffer® Dough Conveyors are designed to optimize dough transfer and maintain consistent product flow in high-throughput bakery operations. Incline conveyors offer smooth, flighted, or cupped belts, while horizontal conveyors provide reversing capabilities for flexible layouts. Positive drive belts eliminate slippage and tracking issues, and optional integrated controls enhance automation, sanitation, and operational efficiency.
Reliable performance across batch sizes
Models can handle batch capacities from less than 273 kg (600 lbs) up to 1,458 kg (3,200 lbs), with hopper volumes from 601L(21.2cu ft) to 2,683L (94.8 cu ft). Variable speed motors allow conveyors to match downstream line speeds for smooth, uninterrupted dough handling.
Hygienic construction for industrial environments
All systems feature heavy-duty stainless steel frames, UHMW belt supports, metal-detectable belt scrapers, and NEMA 4X operator enclosures. Shaffer® Dough Conveyors meet BISSC, UL, cUL, ANSI, USDA, and CE standards, providing a safe and sanitary solution for 24/7 production.
Operator-friendly controls and integration options
Conveyor controls can be standalone or integrated with other dough handling equipment. Optional features like quick-release belts, cut-off knives, and custom control packages, enhance sanitation, automation, and operational flexibility.
| Model | Capacity | Volume |
|---|---|---|
| HS6 | 273 kg (600 lb) | 601 L (21.2 cu ft) |
| HS8 | 364 kg (800 lb) | 676 L (23.9 cu ft) |
| HS10 | 455 kg (1,000 lb) | 789 L (27.9 cu ft) |
| HS13 | 590 kg (1,300 lb) | 1,032 L (36.5 cu ft) |
| HS16 | 727 kg (1,600 lb) | 1,414 L (49.9 cu ft) |
| HS20 | 909 kg (2,000 lb) | 1,619 L (57.2 cu ft) |
| HS25 | 1,136 kg (2,500 lb) | 2,124 L (75 cu ft) |
| HS28 | 1,273 kg (2,800 lb) | 2,292 L (81 cu ft) |
| HS32 | 1,458 kg (3,200 lb) | 2,683 L (94.8 cu ft) |
Main features
- Heavy-duty stainless steel frame construction: designed for wash down and easy sanitation
- Incline conveyor: available with smooth, flighted, or cupped conveyor belts
- Horizontal conveyor with reversing capabilities
- Positively driven food-grade belting
- Variable speed motors to match downstream line speeds
- Positive drive conveyor belt with integral teeth: eliminates slippage, pre-tensioning, and tracking issues
- Metal detectable dual durometer belt scraper
- NEMA 4X operator and starter enclosures
- Standalone conveyor controls or integrated with dough handling/other equipment
- UHMW belt supports
- UL and cUL compliant controls
- BISSC certified
- ANSI, USDA, and CE compliant
Additional features
- NEMA 4X Operator and Starter Enclosures
- Standalone Conveyor Controls or controls integrated with dough handling or other equipment
- UHMW Belt Supports
- UL and cUL Compliant Controls
- BISSC Certified
Optional features
- Mounted on heavy duty casters for mobility
- Custom control packages
- Custom conveyor layout capabilities
- Cut-off knife at discharge end of conveyor for control of dough stream
- Integrated metal detector mounting
- Quick release mechanism to remove tension from belt for quick and easy sanitation of components below or between conveyor belting
- Meltric plug and receptacle for disconnect at motor
Optional features
- Mounted on heavy duty casters for mobility
- Custom control packages
- Custom conveyor layout capabilities
- Cut-off knife at discharge end of conveyor for control of dough stream
- Integrated metal detector mounting
- Quick release mechanism to remove tension from belt for quick and easy sanitation of components below or between conveyor belting
- Meltric plug and receptacle for disconnect at motor
