TRUCLEAN™ 590 heavy duty Rotary moulder
Heavy duty rotary moulder for pet food,
energy bars & large dough products
Biscuit rotary moulder for large-scale forming applications

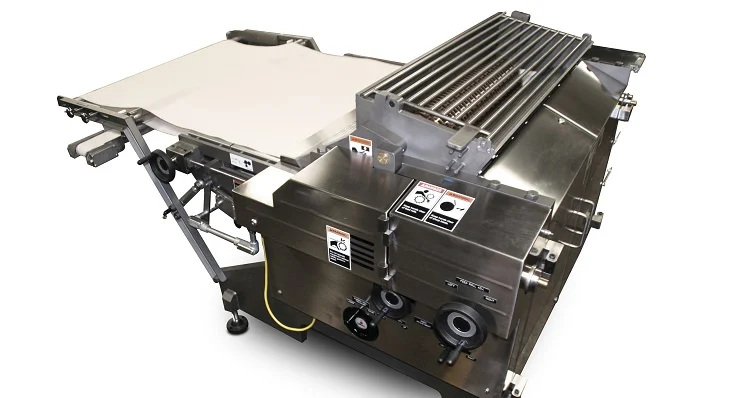

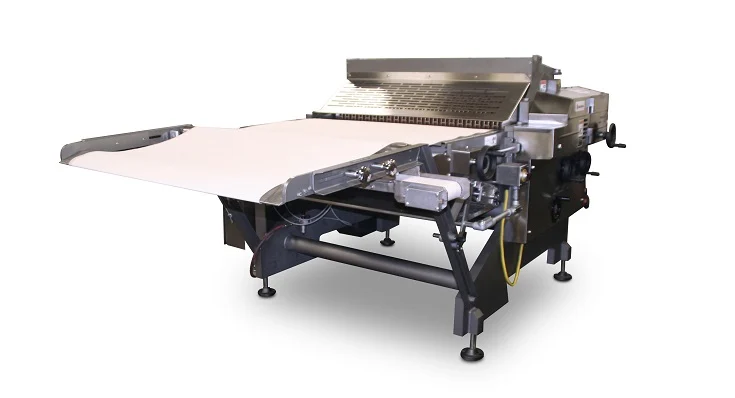

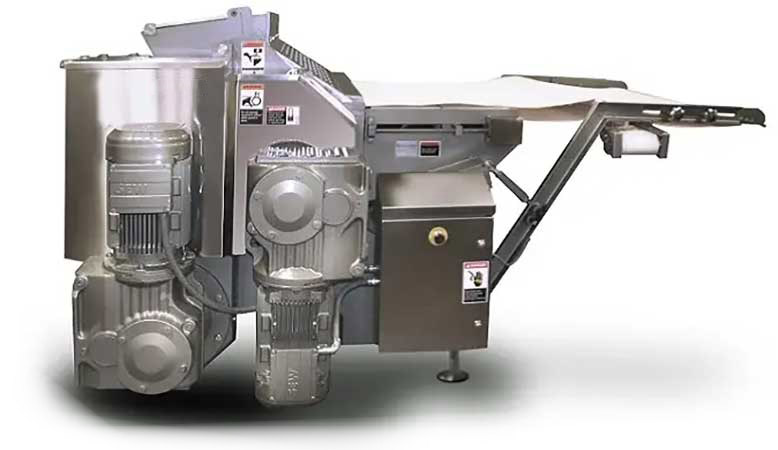

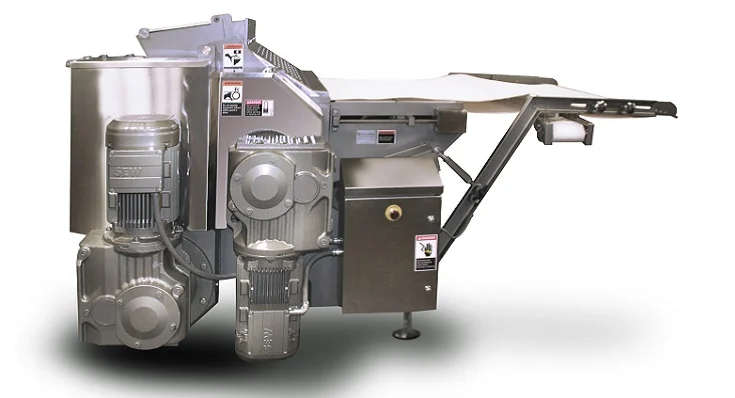

The Baker Perkins TruClean™ 590 Heavy Duty Rotary Moulder is engineered for the high-demand forming of large, thick products such as pet food, energy bars, and other developed or abrasive doughs. This includes large, thick developed doughs with abrasive ingredients such as bone meal. Designed with robust components and reinforced roll coatings, the machine features a bolt-together design that allows easy disassembly and fast die roll changeover. The machine delivers consistent high-speed performance with superior efficiency and durability.
The TruClean™ 590 Heavy Duty Rotary Moulder is ideal for:
- Rotary-moulded pet food and energy bar production
- High-volume processing of large or abrasive doughs
- Applications requiring heavy-duty design and precise weight control
- Operations prioritizing hygiene, fast changeovers, and low maintenance
- Overview
- Range
- Options
- Gallery
Tab Content
The Baker Perkins TruClean™ 590 Heavy Duty Rotary Moulder is engineered for challenging applications like pet food production. Built with reinforced components and independent servo drives, it handles difficult, abrasive doughs while maintaining high output and hygiene. It is ideal for full-scale production lines requiring robust performance, recipe precision, and easy maintenance.
Built for demanding doughs
The 590’s heavy-duty construction, large die rolls, and abrasion-resistant coatings are specifically designed to process thick, developed doughs with aggressive inclusions—common in pet food applications.
Reliable and efficient production
Independent servo drives, high-speed operation, and precise recipe control allow optimal settings for maximum reliability and minimal waste. The 590 is designed for high throughput with low operating costs.
Optimized for hygiene and maintenance
Easy access, tool-free guards, removable rolls, and a hygienic TruClean™ design enable fast cleaning and changeovers, supporting efficient, sanitary operation in demanding environments. The extraction apron system includes pressure-adjustable rubber rollers, scraper knife, and a cross conveyor to efficiently remove scrap and aid belt tracking. Heavy-duty knife assembly is fully adjustable horizontally and vertically during operation.
| Model | Band Width (cm/in) | Die Roll Diameter (cm/in) | Feed Roll Diameter (cm/in) | Rubber Roll Diameter (cm/in) | Moulding Roll Speed (RPMs) |
|---|---|---|---|---|---|
| TruClean™ 590 Heavy Duty Rotary Moulder | 99 to 165 cm (39″ to 65″) | 34 cm (13.38″) | 33 cm (13″) | 25.4 cm (10″) | 7–20 RPM |
Optional features
- Centralized lubrication pump for easier maintenance
- Pneumatic automatic belt tracking to ensure consistent operation
- ¾ ton chain hoist and davit for safe, easy die roll removal
- Independent drive for feed roll and die rolls for precise control
- Servo-driven motors with independent control of feed and die rolls and manual adjustment options for optimized performance
- Quick-change die rolls and rolls for fast product format changes
- Hygienic design with tool-free guards and easy-clean components
- Robust stainless steel frame for durability and compliance
- NEMA 4X-rated electrical enclosures for harsh environments
- Remote diagnostics and connectivity options for maintenance support
Frame options
- Robust stainless steel frame designed for durability and hygiene
- Open-frame design for easy access and cleaning
- Optional enclosed frame configurations available upon request
- Mounted on lockable casters or fixed feet depending on facility needs
Download
brochure
To learn more about the Trueclean™ 590 Heavy Duty Rotary Moulder by Baker Perkins, please download our PDF documentation.
Request a quote
Our sales team is standing by to help you find and procure the right equipment for your process requirements.
