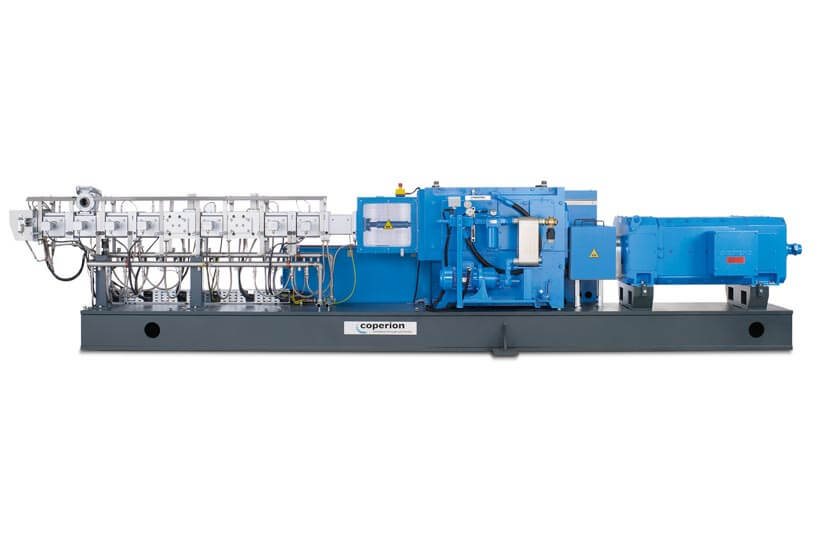

ZSK Mv PLUS extruder

Twin screw food extruder
for the food industry

High-throughput food extrusion with gentle handling

ZSK Mv PLUS extruder from Coperion delivers maximum throughput for high-volume processes while ensuring gentle product handling and high efficiency. Its large free screw volume, high screw speeds, and elevated specific torque allow for faster production of formulations with low bulk density, improving plant productivity and flexibility. With proven technology and comprehensive process support, the ZSK Mv PLUS is ideal for manufacturers seeking efficiency, quality, and versatility in food, health, and nutrition products.

Ideal applications:

Cereal and starch-based products
Nutritional powders and supplements
Functional food ingredients
Pet food and animal nutrition products

Benefits:

Maximum power density for high productivity
Gentle product handling for consistent quality
High screw speed and excellent mixing performance
Flexible design for product changes and machine modifications
Energy-efficient operation to conserve resources
Reliable scale-up and proven technology
Global after-sales service and comprehensive support

See ZSK Mv PLUS extruder in action

Learn how the ZSK Mv PLUS extruder provides energy-efficient, flexible solutions for scaling up your food, health, and nutrition production.

Alternatively, watch this video on Youtube

Overview
Range
Features
Gallery

The ZSK Mv PLUS twin screw extruder delivers maximum throughput for high-volume food, health, and nutrition products while ensuring gentle product handling and consistent quality. Its large free screw volume, high screw speeds, and elevated specific torque allow manufacturers to produce formulations with low bulk density or sensitive ingredients efficiently and reliably.

Designed for flexibility and efficiency

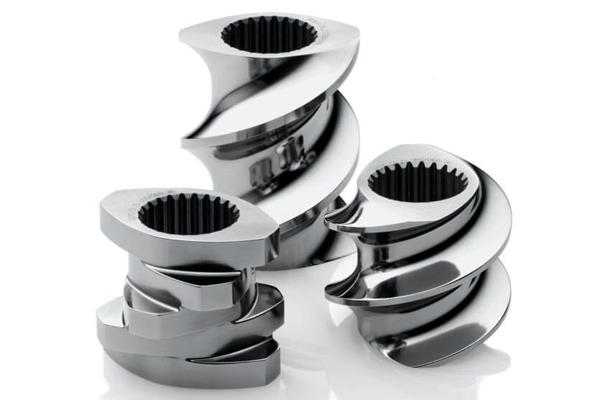

With a modular screw design, optimized screw elements, and flexible process control, the ZSK Mv PLUS enables fast product adjustments, recipe changes, and easy process scale-up. Its energy-efficient operation reduces production costs, while the proven technology ensures reliable, reproducible results across a wide range of formulations.

Reliable performance for diverse applications
The ZSK Mv PLUS supports high-volume processes for cereals, nutritional powders, functional food ingredients, and pet food. Its gentle handling, precise mixing, and process flexibility make it ideal for manufacturers developing new products or scaling up from pilot to full production lines.

Model	Max. torque per shaft [Nm]	Specific torque [Nm/cm³]	Max. screw speed [min-1]	Max. motor power [kW]	Screw diameter [mm]
ZSK 27 Mv PLUS	100	10.6	1,800	40	27
ZSK 34 Mv PLUS	205	11.3	1,800	81	34
ZSK 43 Mv PLUS	420	11.3	1,800	166	43
ZSK 54 Mv PLUS	815	11.3	1,800	323	54
ZSK 62 Mv PLUS	1,250	11.3	1,800	495	62
ZSK 76 Mv PLUS	2,250	11.3	1,800	900	76
ZSK 98 Mv PLUS	5,000	11.3	1,500	1,649	98
ZSK 125 Mv PLUS	10,300	11.3	1,500	3,397	125
ZSK 248/250 Mv PLUS	44,000	6.0	300*	2,800	248

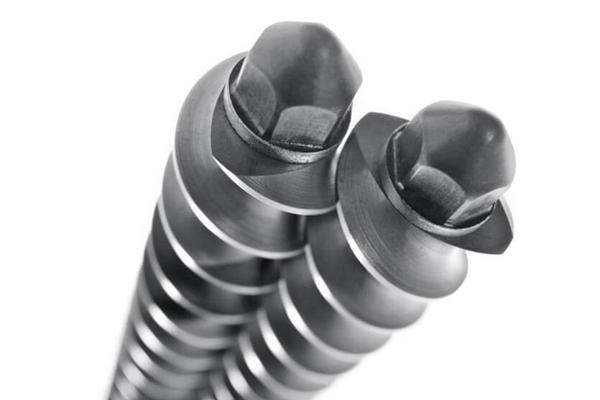

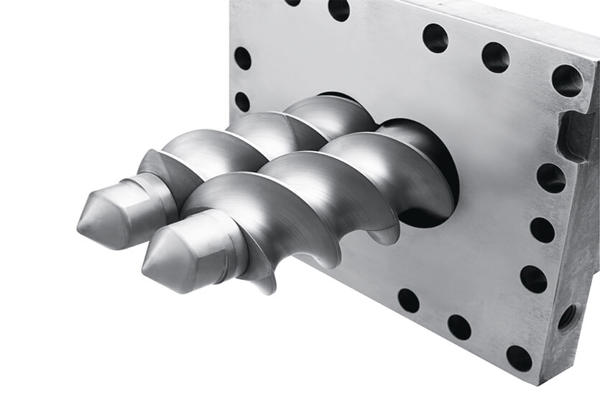

Screw volume

Greater residence time for mixing or reaction processes
Deeply cut screw channels (Do/Di ratio 1.8)
Improved feeding of low-bulk-weight ingredients like flours, starches, and pigments
Gentle handling and reduced thermal and shear stress
