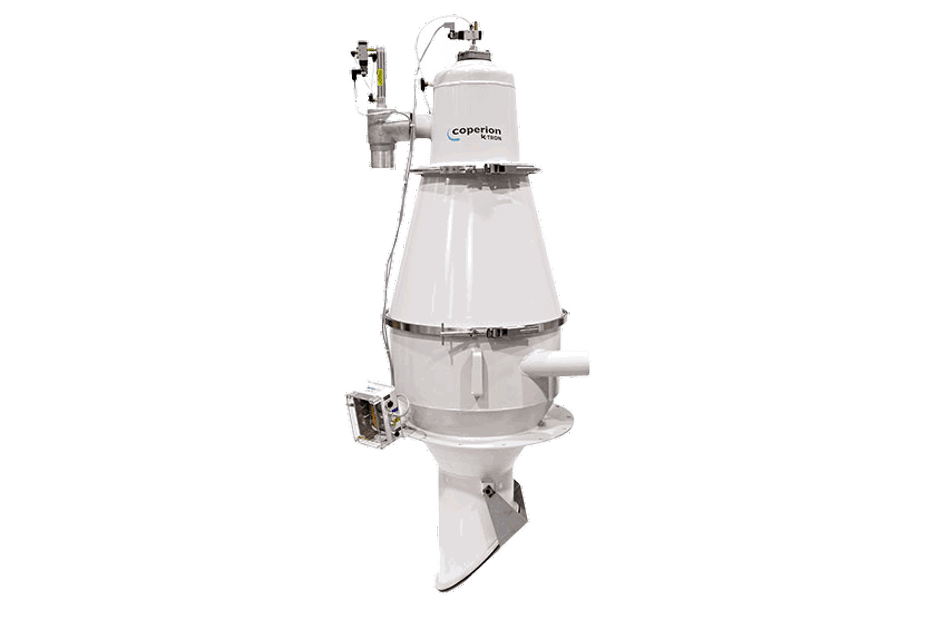

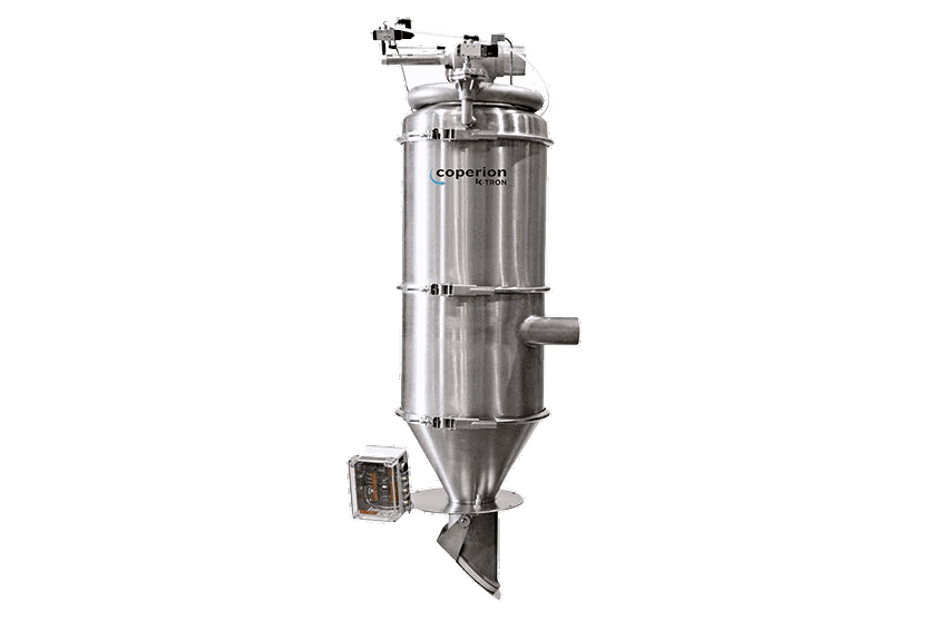

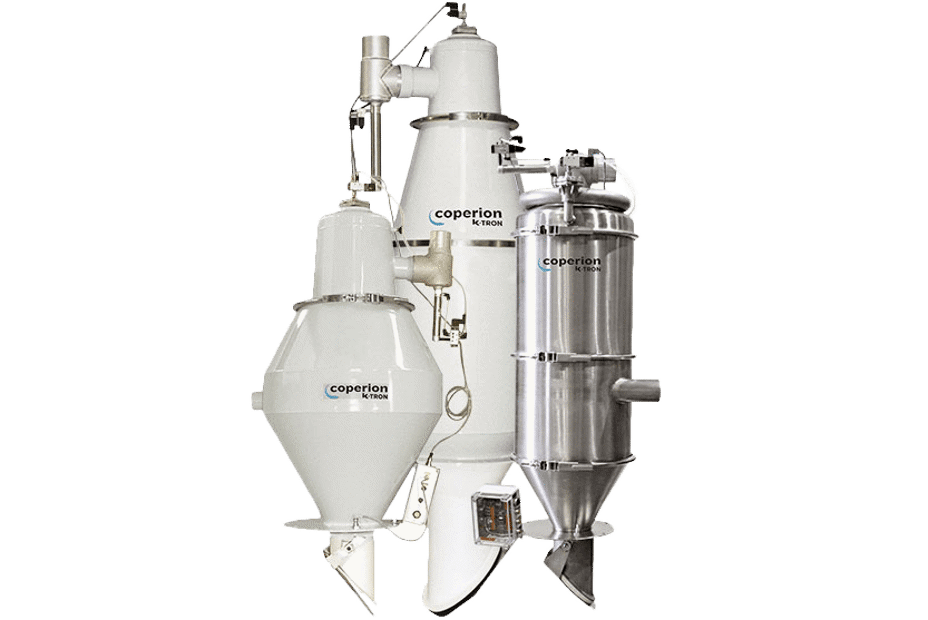

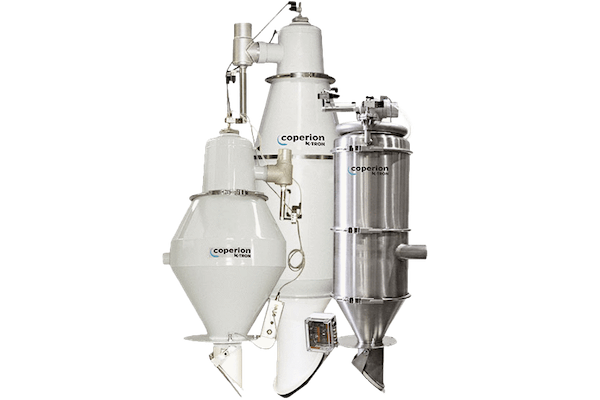

Series 2400 receiver

Vacuum sequencing systems for powder & pellet receivers

Versatile line of receivers for a variety of bulk materials

Series 2400 receivers from K-Tron offer versatile, high-capacity vacuum conveying for powders, pellets, and granular materials, ensuring reliable operation across multi-destination bulk handling systems.

More about K-tron

This receiver is compatible with plastics, chemicals, and mineral processing applications. For more details, please visit the series 2400 receiver page on the Coperion performance material website.

Overview
Features
Range
Gallery

The series 2400 powder & pellet receivers are designed for high-capacity vacuum conveying of powders, pellets, regrind, and granular food ingredients. Ideal for multi-destination or central vacuum systems, these receivers combine flexible construction, gentle material handling, and reliable operation to meet the needs of modern food processing plants.

System controllers & automation

PLC – Programmable Logic Central Controller for advanced integration
MPC – Microprocessor Central Controller for flexible system management
LSR – Loader / Single Receiver Controller for single-receiver setups
Feeder Controls – K-Vision (graphical interface) and KSC Smart Commander (compact, smart control)

Built in carbon steel, painted aluminum, or stainless steel
Choice of gravity, orifice, slide, or butterfly valves
Works with central vacuum blower systems
NEC models available for compliance
Full support flange for secure mounting
Durable modular design for long-lasting use
Automatic reverse jet cleaning for easy maintenance

Powder receiver for feeder refills

Model	Receiving volume	Conveying rate
2410 Powder	9.7 dm³ [0.34 ft³]	408 kg/h [900 lb/h]
2415 Powder	22.8 dm³ [0.8 ft³]	1,000 kg/h [2,200 lb/h]
2420 Powder	19.8 dm³ [0.7 ft³]	1,225 kg/h [2,700 lb/h]
2423 Powder	44 dm³ [1.55 ft³]	1,406 kg/h [3,100 lb/h]
2424 Powder	106 dm³ [3.74 ft³]	3,175 kg/h [7,000 lb/h]

Pellet receivers for general conveying

Model	Receiving volume	Conveying rate
2410 Powder	11.7 dm³ [0.41 ft³]	408 kg/h [900 lb/h]
2415 Powder	28.5 dm³ [1 ft³]	1,000 kg/h [2,200 lb/h]
2420 Powder	33 dm³ [1.16 ft³]	1,225 kg/h [2,700 lb/h]
2423 Powder	70.8 dm³ [2.05 ft³]	1,406 kg/h [3,100 lb/h]
2424 Powder	134 dm³ [4.74 ft³]	3,175 kg/h [7,000 lb/h]

Pellet receivers for general conveying

Model	Receiving volume	Conveying rate
2406 Pellet	1 dm³ [0.039 ft³]	327 kg/h [720 lb/h]
2410 Pellet	11.7 dm³ [0.41 ft³]	1,180 kg/h [2,600 lb/h]
2415 Pellet	28.5 dm³ [1 ft³]	2,722 kg/h [6,000 lb/h]
2424 Pellet	134 dm³ [4.74 ft³]	6,800 kg/h [15,000 lb/h]

Pellet receivers for feeder refill

Model	Receiving volume	Conveying rate
2410 Pellet	9.7 dm³ [0.34 ft³]	1,180 kg/h [2,600 lb/h]
2415 Pellet	22.8 dm³ [0.8 ft³]	2,722 kg/h [6,000 lb/h]
2424 Pellet	106 dm³ [3.74 ft³]	6,800 kg/h [15,000 lb/h]
