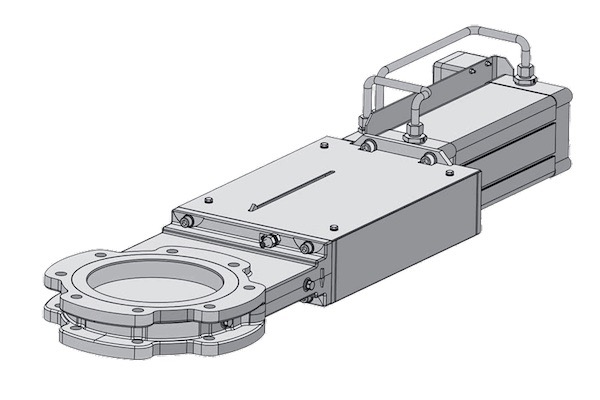

Conveying line gate valve FUT
Slide gate valve for powders and granular products
Stainless steel slide gate valve for bulk materials
Coperion’s Stainless Steel Slide Gate Valve is designed for precise and reliable handling of powders and granular materials in conveying systems. Its optimized free cross-section ensures smooth material flow without restrictions, even when installed in pipes of varying diameters.
Ideal for integration in conveying lines operating at up to 4.5 barg, this valve combines compact design with high performance.
This valve is compatible with plastics, chemicals, and mineral processing applications. For more details, please visit the conveying line gate valve FUT page on Coperion performance material website.
- Features
- Gallery
- Pressure range: Up to 4.5 barg (65 psi) system and differential pressure
- Operating temperature: -20 °C to 100 °C
- Application: Suitable for all bulk materials with particle sizes d10 > q0 µm and d90 < 6 mm. Designed for fluid group 2 according to PED (fluid group 1 available on request)
- Seal configuration: Gland-sealed seal positioned in the drop-through opening, providing tight closure and minimal leakage
- Construction material: High-quality stainless steel
- Design advantages: Low construction height for easy integration in existing systems, optimized free cross-section for unrestricted material flow
